FuelTech Jr. Dragster EFI Package

Everything you need to put a Jr. Dragster on FuelTech EFI, under one part number. Built around the FuelTech FT450 ECU with a wideband O2 conditioner, the essential engine sensors, a driveshaft speed sensor and an unterminated harness so you can wire it clean to your chassis. Full engine management and data logging so you can tune with confidence and actually see what the car is doing down the track.

See the full package breakdown →

WHAT'S INCLUDED

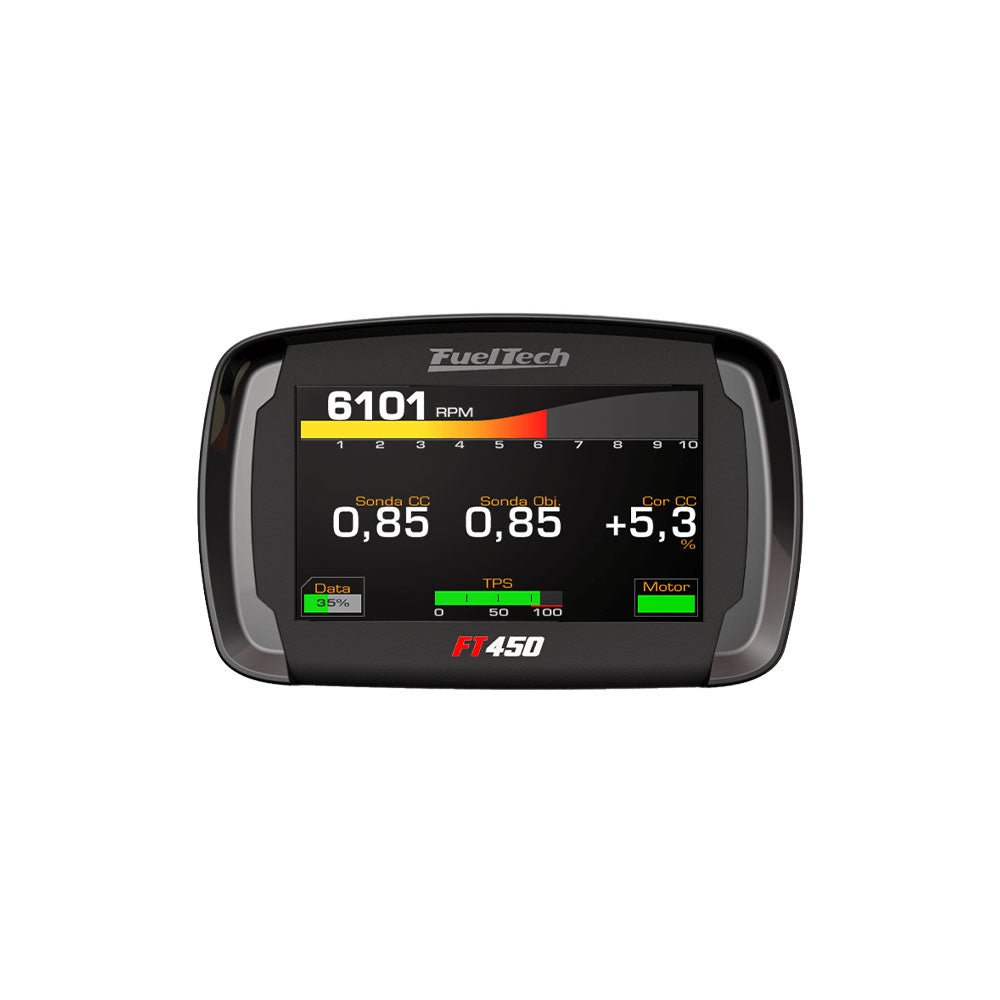

• 1 x FuelTech FT450 EFI System ECU
• 1 x FT450/550 A Unterminated Harness (10 ft)

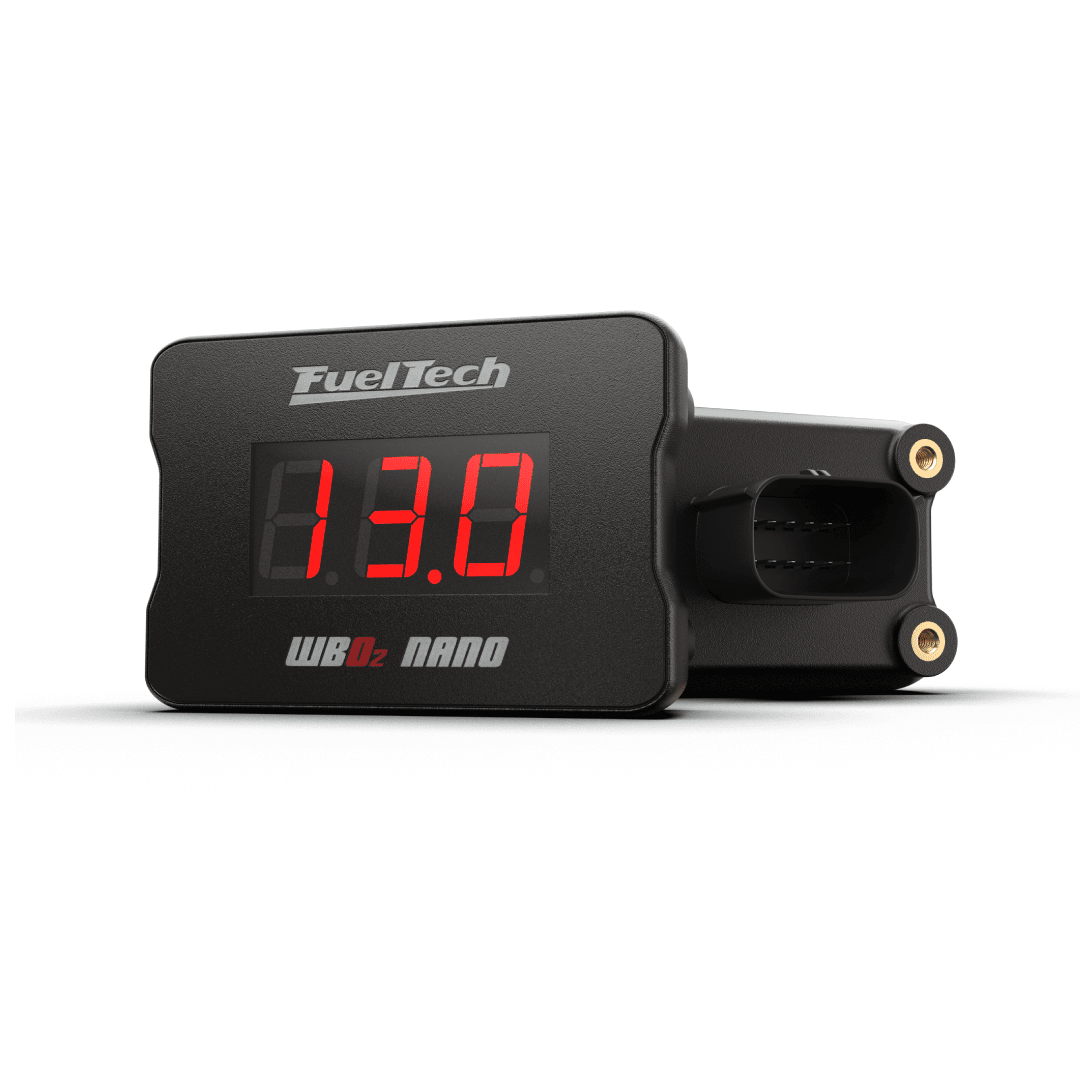

• 1 x WB-O2 Nano wideband conditioner
• 1 x Nano LSU 4.2 harness (6.5 ft)
• 1 x Bosch LSU 4.2 wideband O2 sensor
• 1 x FT Injector 85 lb/h GEN 3 (high impedance, EV1)

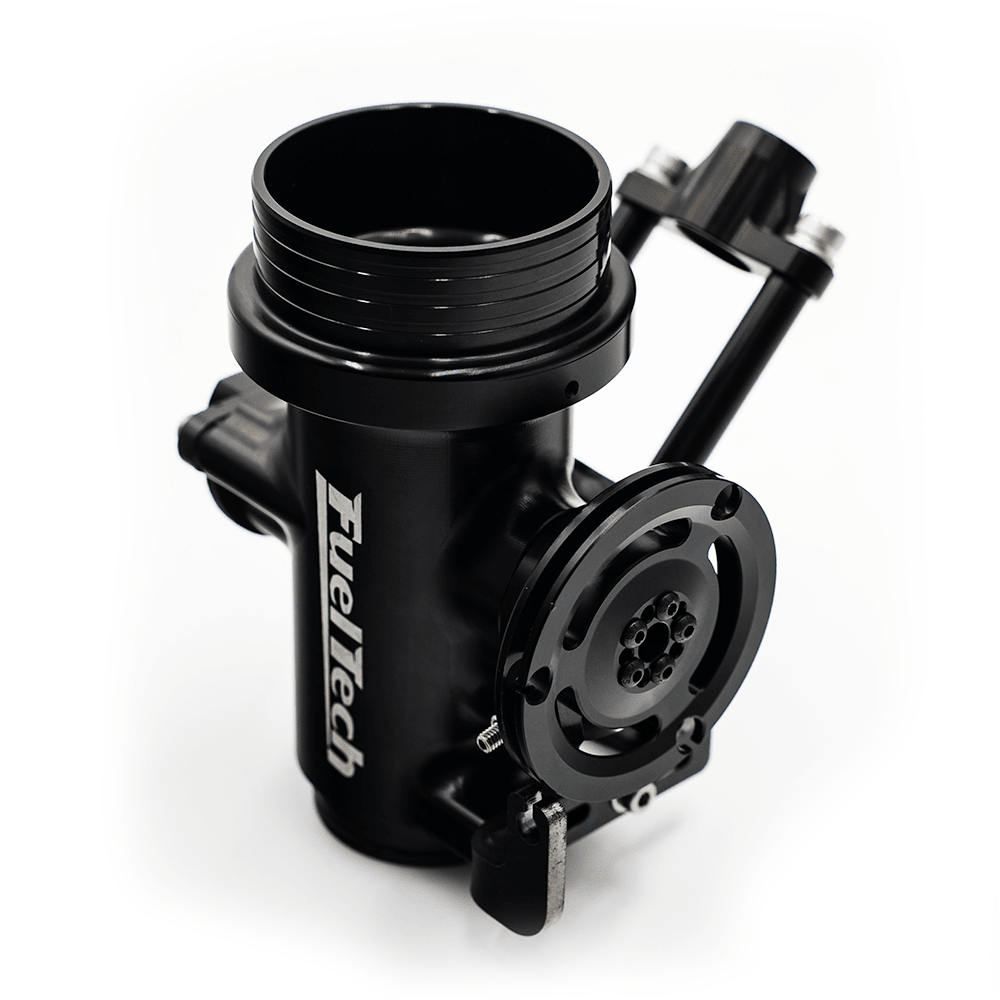

• 1 x FuelTech Junior Dragster Throttle Body

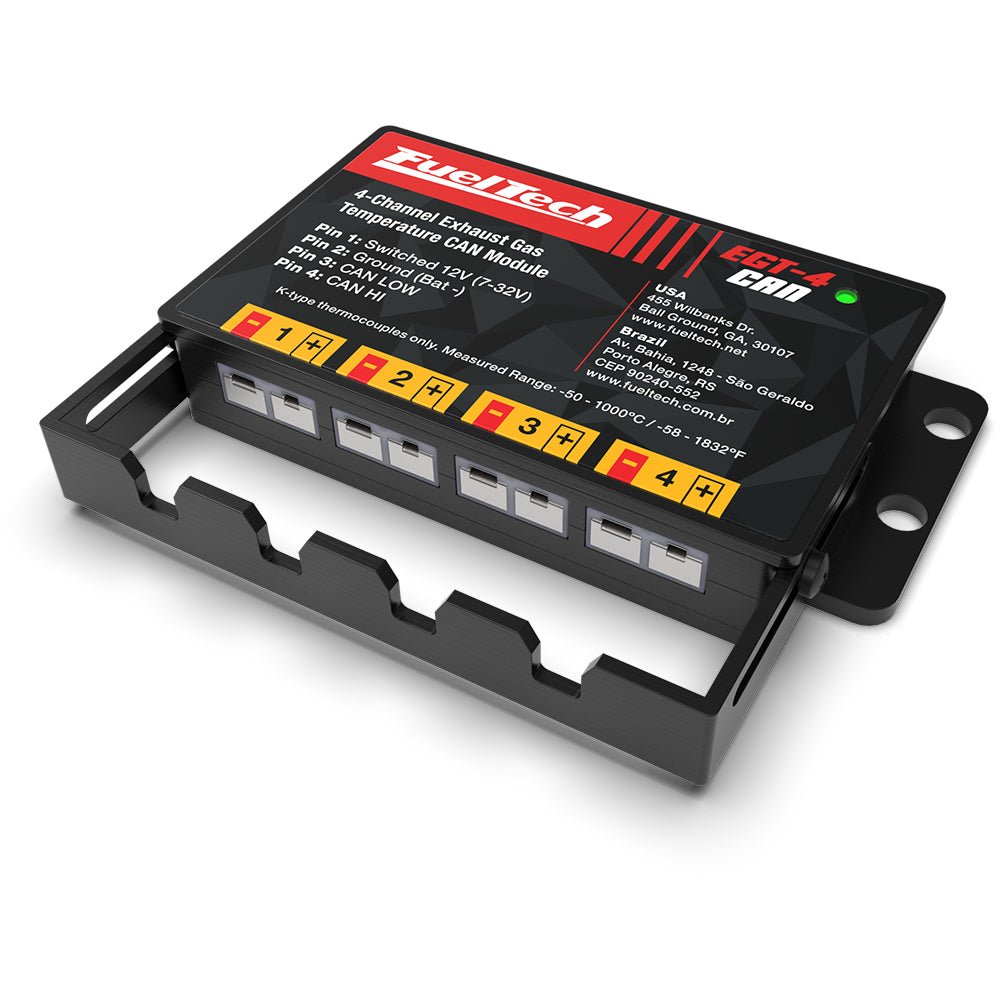

• 1 x EGT-4 CAN with harness
• 1 x Type K exposed tip EGT probe (18 in)
• 1 x CHT cylinder head temperature thermocouple

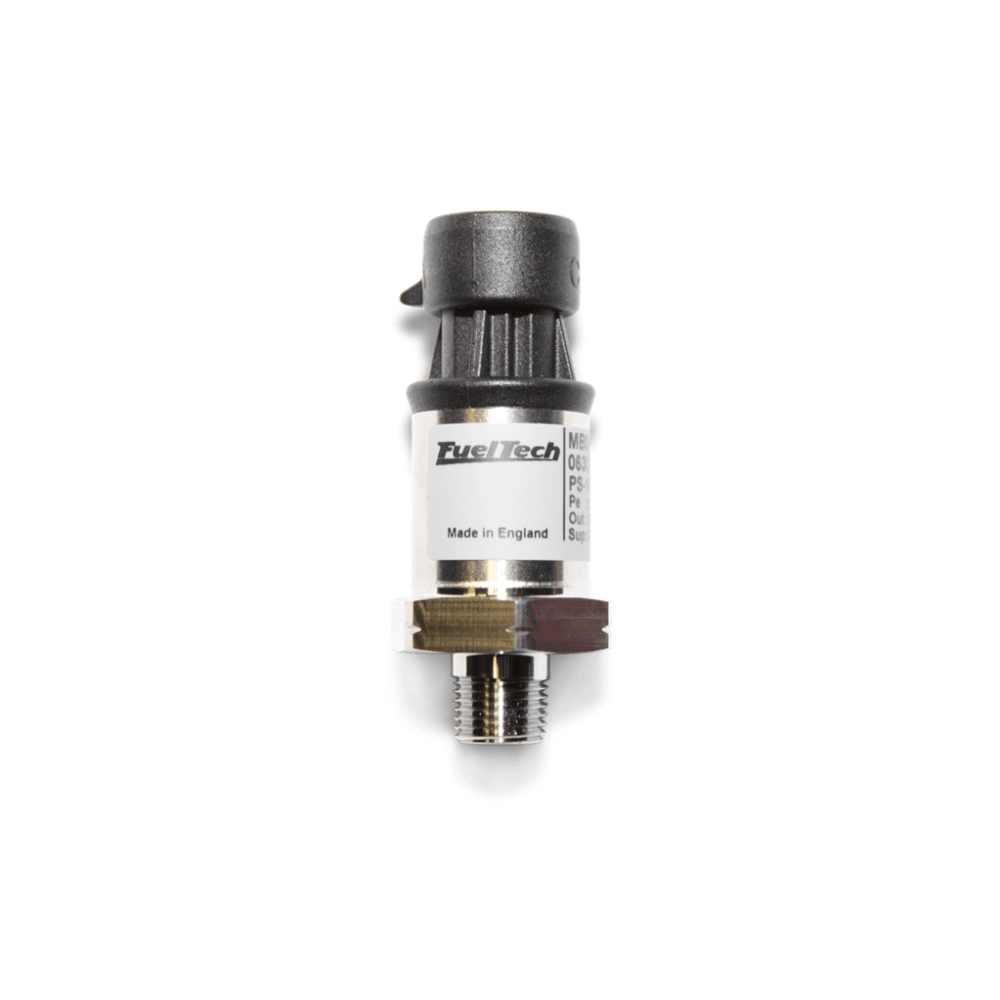

• 1 x Pressure Sensor PRO 0-150 psi with mating plug (fuel pressure)
• 1 x Pressure Sensor PRO 0-1500 psi with mating plug (brake pressure)
• 1 x Davis driveshaft sensor DAV-003

GOOD TO KNOW

• Driveshaft trigger ring and sensor bracket are not included. The Davis sensor needs a steel trigger ring on the driveshaft.
