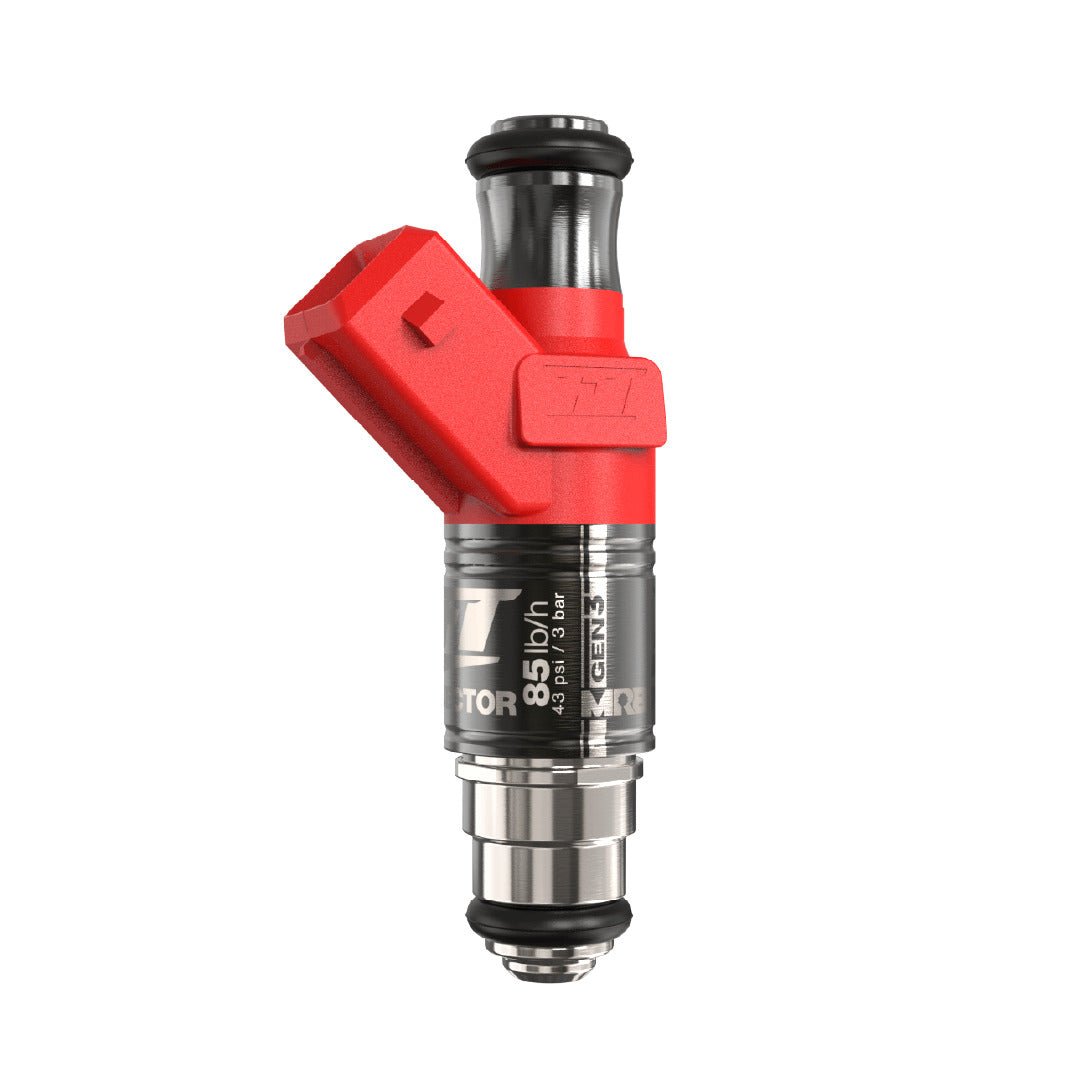

FT Injector 85 lb/h GEN 3

The FT Injector 85 lb/hr GEN 3 is a high impedance fuel injector from the FT Injector family, no Peak and Hold driver is required. The FT Injector is compatible with all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

GENERATION 3 UPGRADES

• New optimized internal coil
• Next generation spray pattern
• New needle geometry
• Elimination of internal filter/screen
• Shorter dead-time (faster and more precise response)
• Improved idle control precision
• Refined operation at low RPM
• Greater stability across the entire operating range

FEATURES

• REAL flow, all injectors are tested and calibrated to ensure linearity, repeatability and accuracy for all cylinders.
• Internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used.
• Compatible with any type of fuel (gasoline, ethanol, nitromethane, nitropropane, MTBE and ETBE)
• Compatible with any ECU on the market
• FuelTech warranty and support

TECHNICAL DESCRIPTION

• High impedance
• Coil resistance: 5.7 - 6.3 Ohms
• Ingress protection rating: IP67 / NEMA6
• Connector: EV1

DIMENSIONS:

• Overall height - 72.5 mm (2.85”)
• Overall width - 18 mm (0.71”)
• O-ring diameter - 14.6 mm (0.57”)
• Tip - 4.1 mm (0.16”)
• Overall diameter - 5.9 mm (0.23”)

PRODUCT CONTENT:

• 1 FT Injector
• 1 Manual

WARRANTY: 90 days
