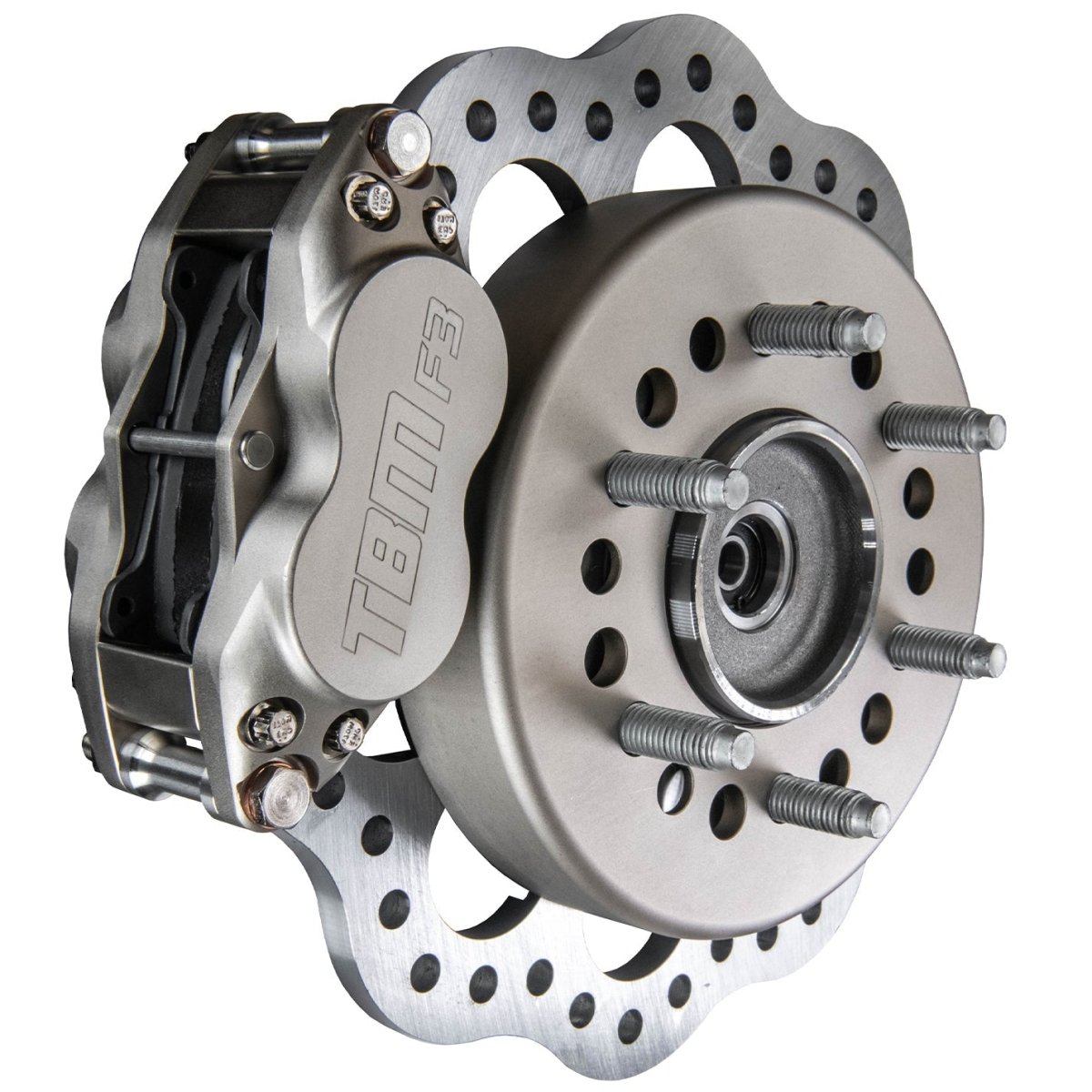

TBM F3 medium duty front drag race brake kit for 2011-2025 Ford F-150 2WD and 4WD trucks with the 6 lug pattern. Available with standard forged F3 calipers or black X-Series F3X calipers.

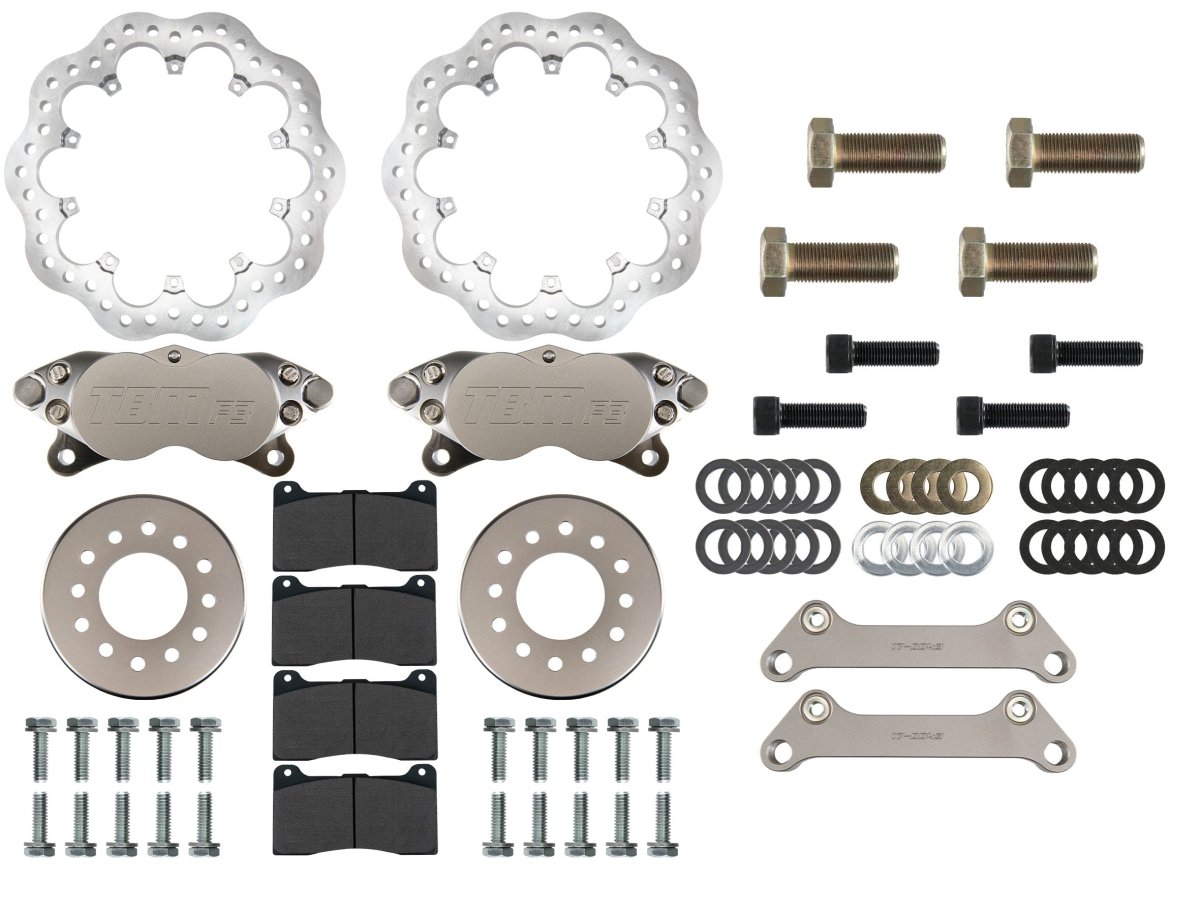

(2) 12.50" x .500" thermally treated Revolution rotors
#1 compound track pads 6-0102W
(2) aluminum rotor hats 204-0226
(2) aluminum caliper brackets 17-0043
Hardware kit

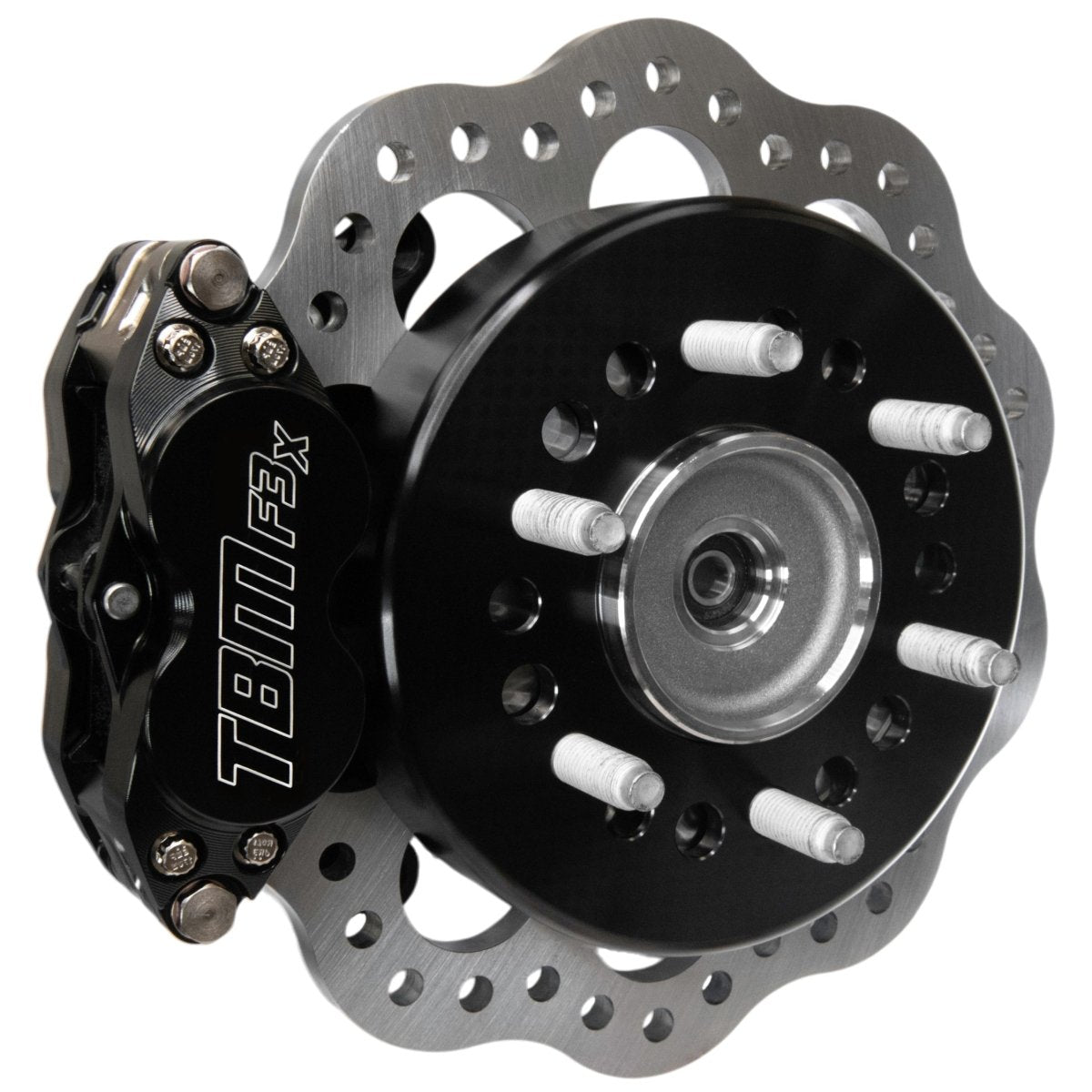

Black (X-Series): same kit with TBM's billet 7075 aluminum F3X calipers, hard coat black anodized.
Kit weight: approx. 26.7 lb.
Installation requires 3AN brake lines, sold separately.
Use red Loctite on all rotor bolts. TBM recommends DOT 5.1 Extreme 6 brake fluid; plan on at least four 12 oz bottles when filling a new, empty system.
