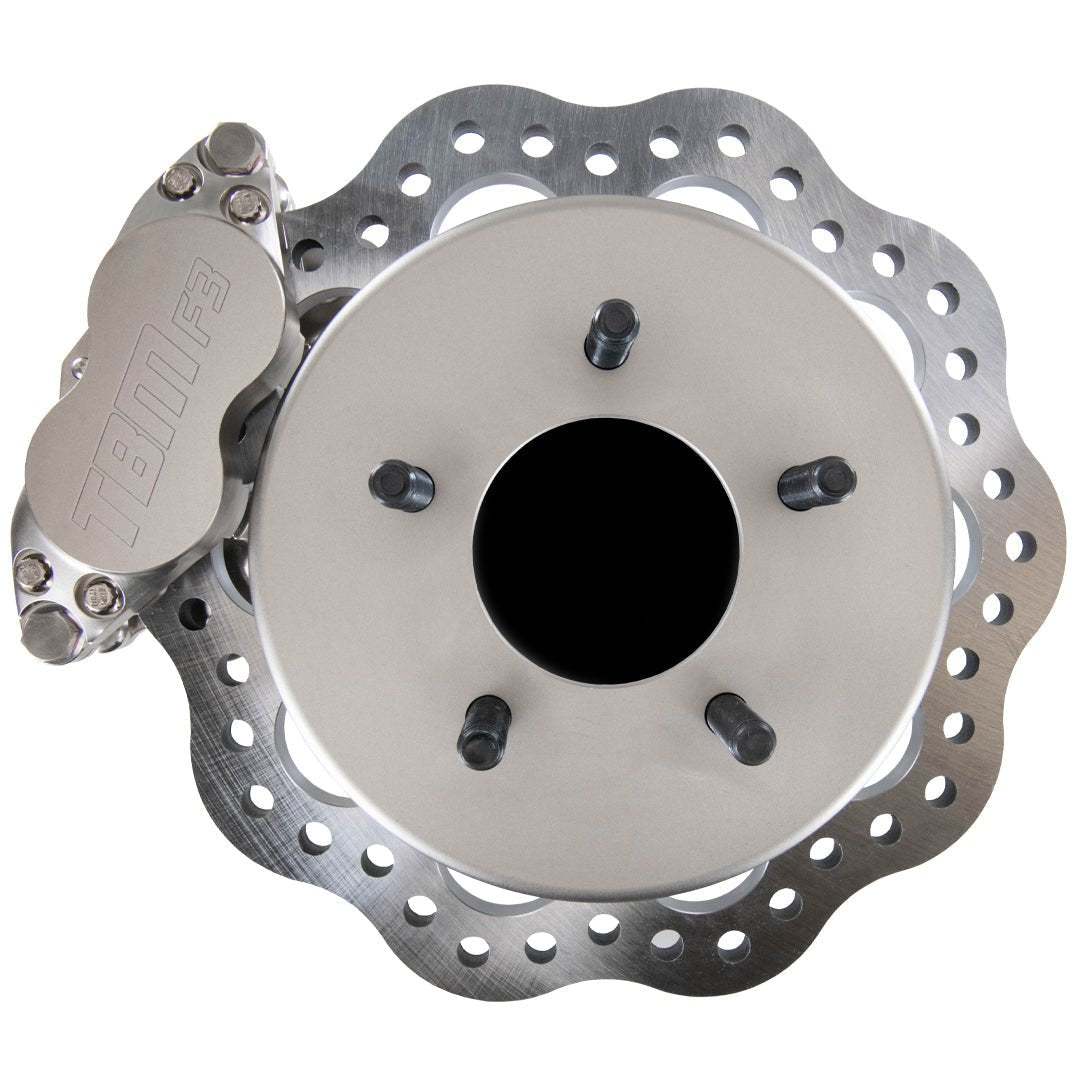

TBM 2011-25 F-150 2WD/4WD Medium Duty Front Drag Race Brake Kit 5 Lug (5x4.75 & 5x5) 001-0363-1

TBM F3 medium duty front drag race brake kit for 2011-2025 Ford F-150 2WD and 4WD trucks converted to a 5 lug pattern. Rotor hats are drilled for 5x4.75 and 5x5.

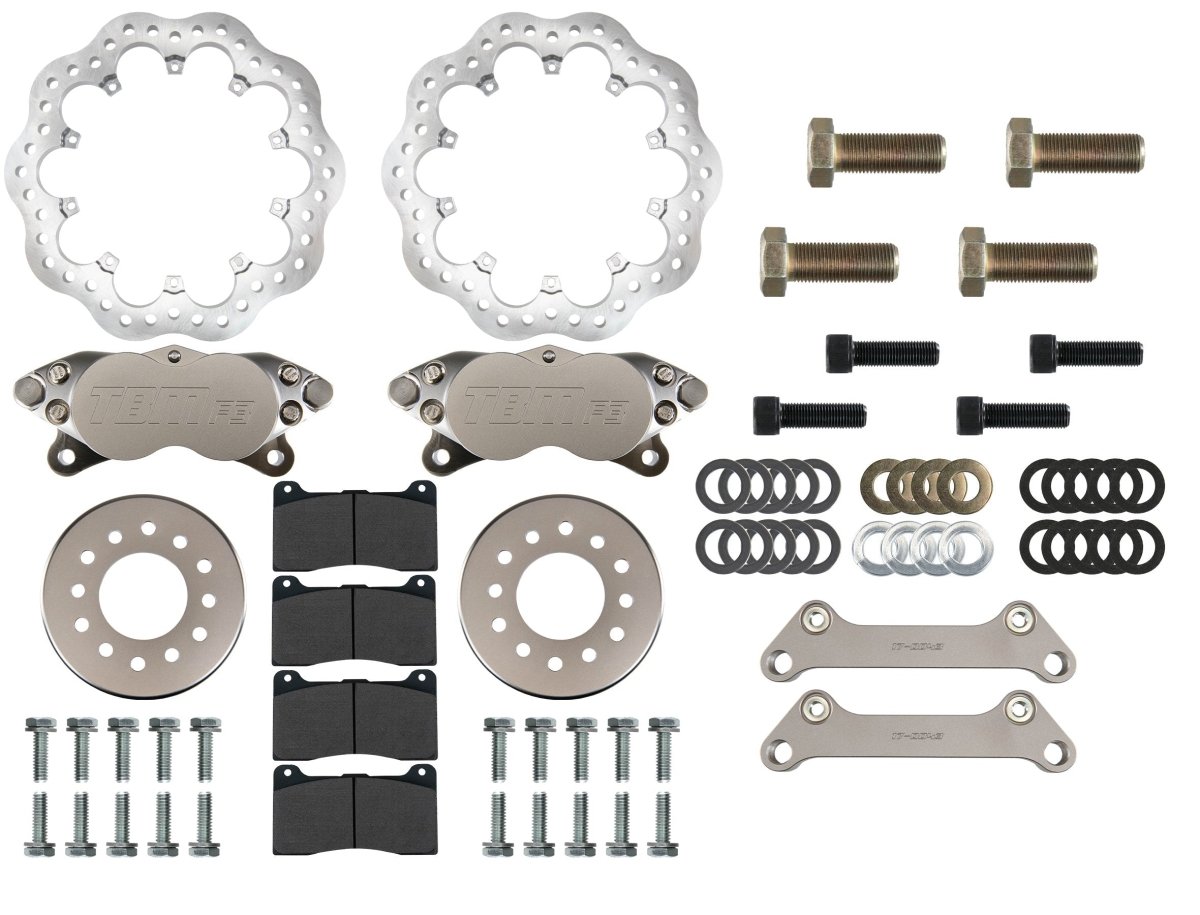

Kit includes:

• (2) F3 4-piston calipers 002-0192SSP-1 / 002-0192SSP-2
• (2) 12.50" x .500" thermally treated Revolution rotors
• #1 compound track pads 6-0102W
• (2) aluminum rotor hats 204-0226-5
• (2) aluminum caliper brackets 17-0043
• Hardware kit

Kit weight: approx. 26.7 lb.

Installation requires 3AN brake lines, sold separately.

Use red Loctite on all rotor bolts. TBM recommends DOT 5.1 Extreme 6 brake fluid; plan on at least four 12 oz bottles when filling a new, empty system.
