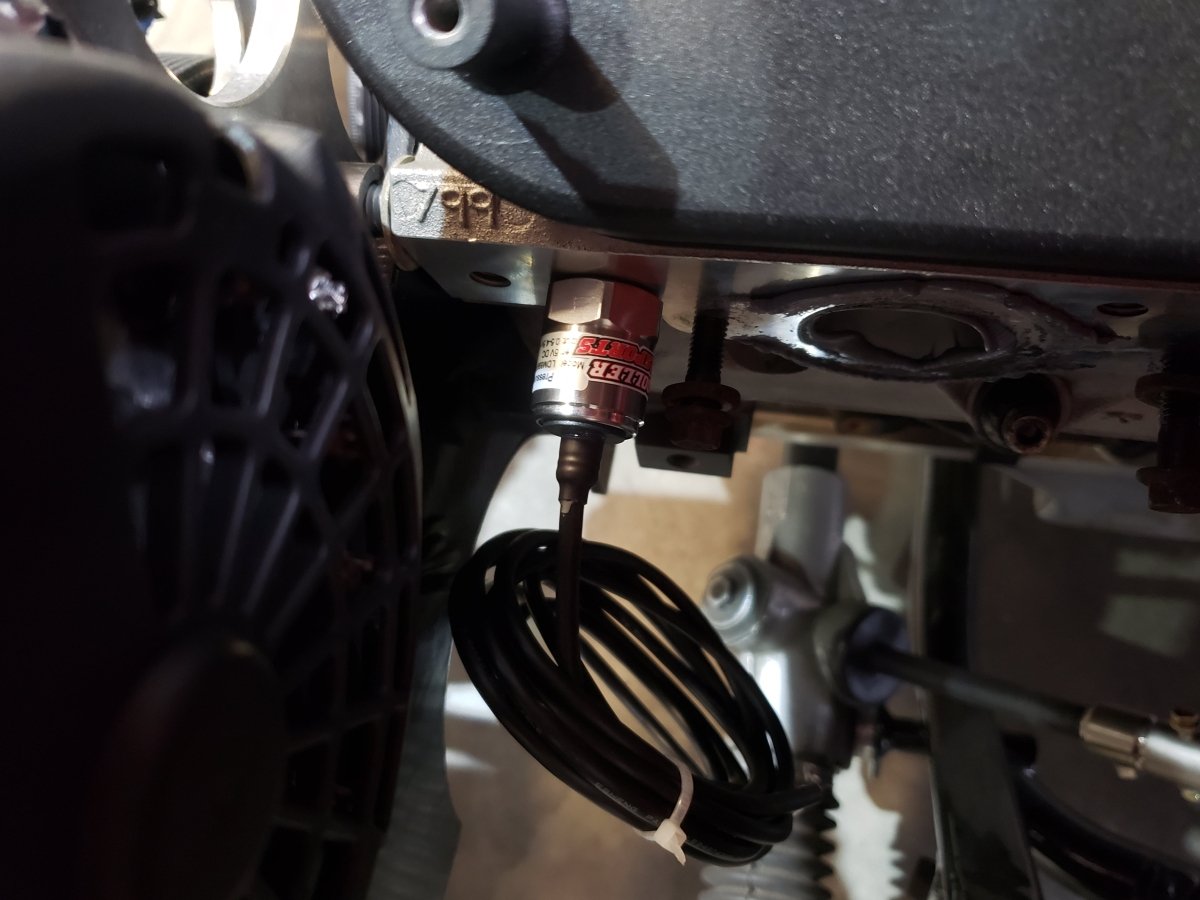

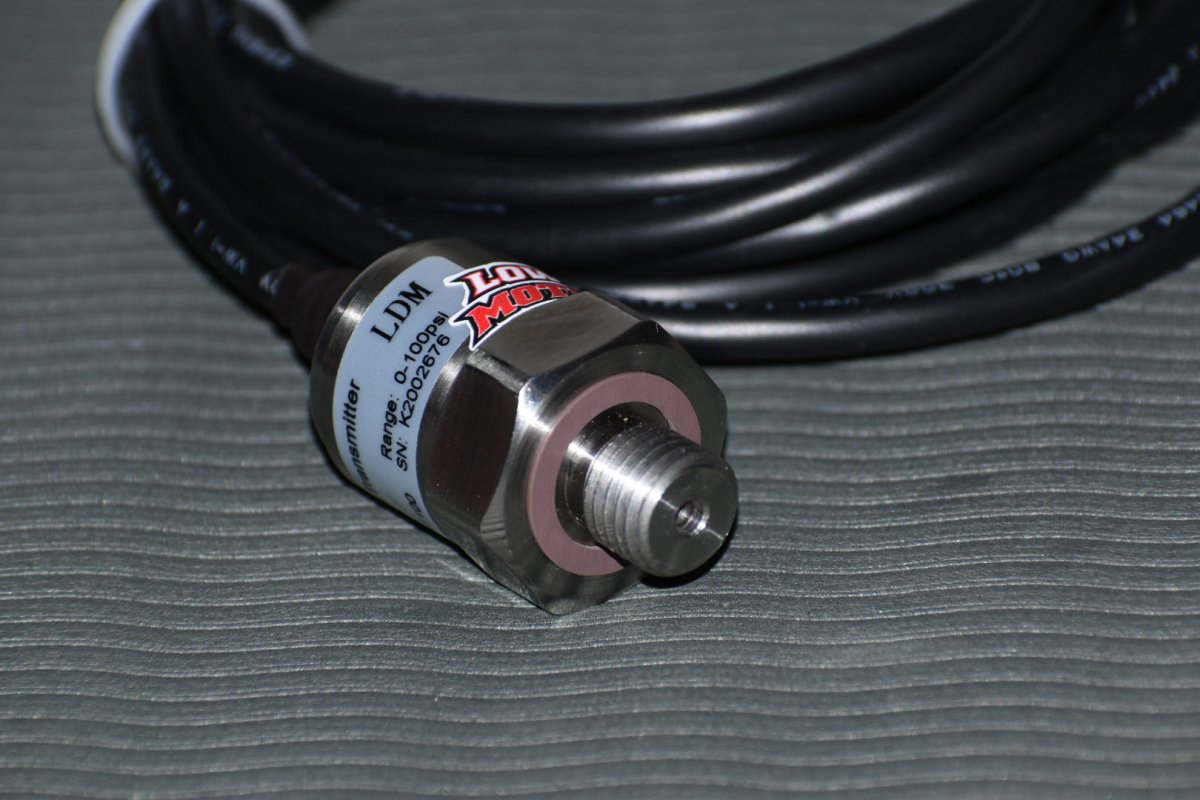

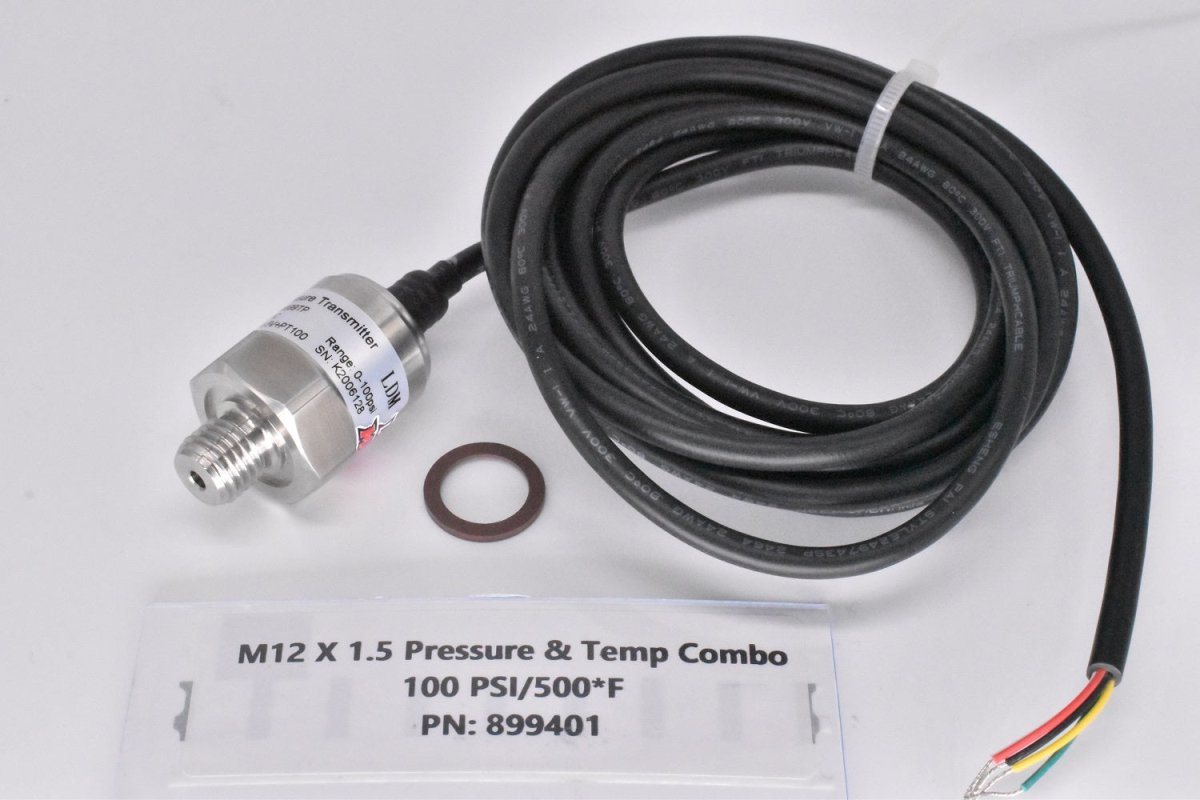

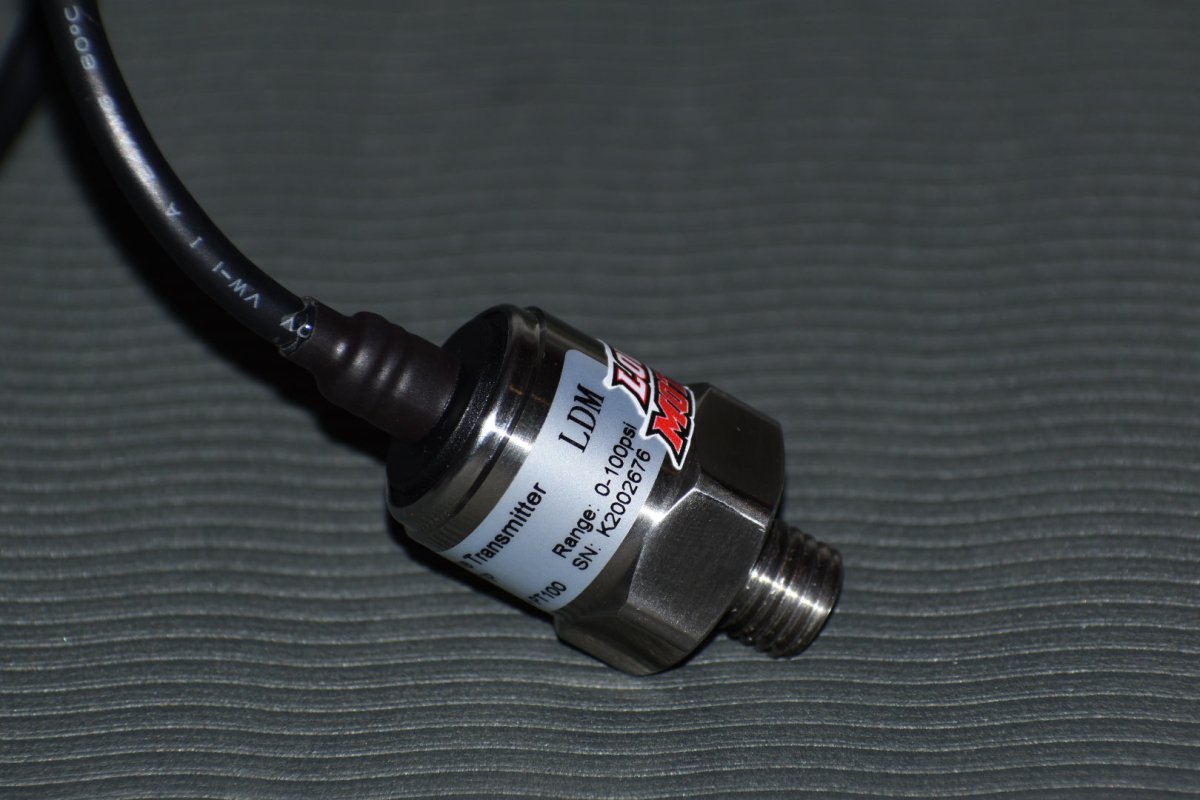

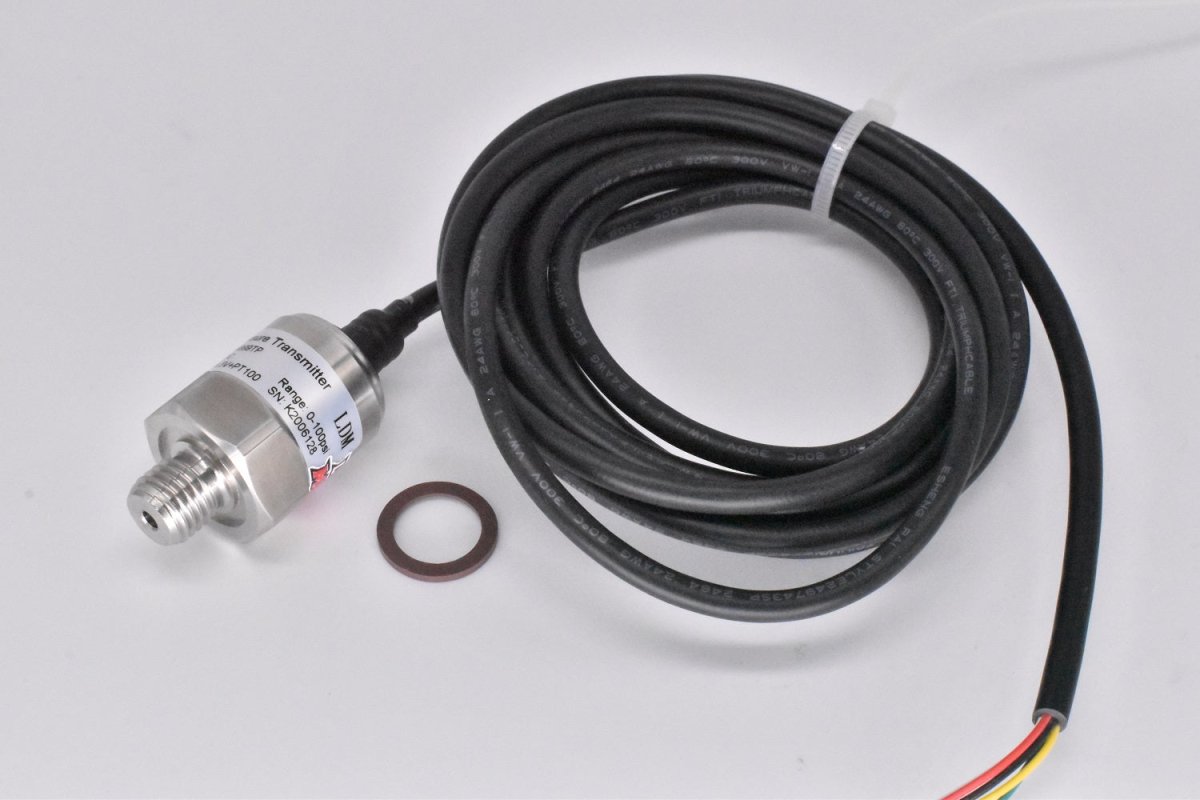

M12 x 1.5 Coolant Pressure & Temperature Combo Sensor 100 PSI / 500°F PN: 899401

Lowdoller Motorsports pressure and temperature combo sensor: 0-100 PSI and 0-500°F in one sensor, one port. Metric M12 x 1.5 thread for coolant applications.

• Pressure: 0-100 PSI, 0.5V to 4.5V output
• Temperature: 0-500°F, resistive (ohms) output
• Input 5V
• Accuracy 0.5%
• M12 x 1.5 thread with sealing ring
• 8.5 ft flying lead
• Ultra compact ASIC chip design, diffused silicon oil filled
• Shock, vibration and corrosion resistant
• Works with Holley, FuelTech, Haltech and other EFI systems

Wiring

• Red: 5V supply
• Black: sensor ground
• Yellow: pressure signal
• White: sensor ground
• Green: temperature signal

Lowdoller part number 899401 (model LDM899TP100).
