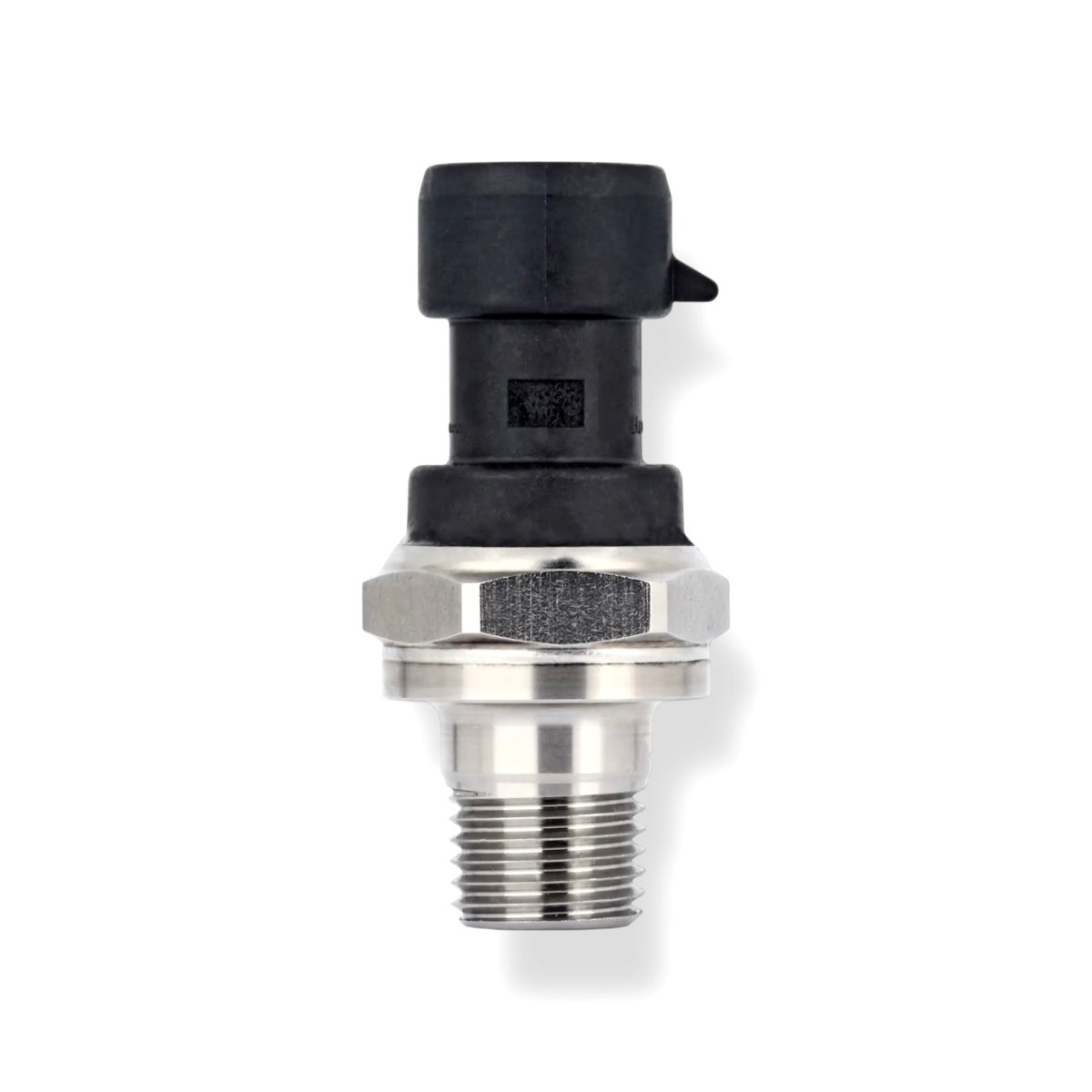

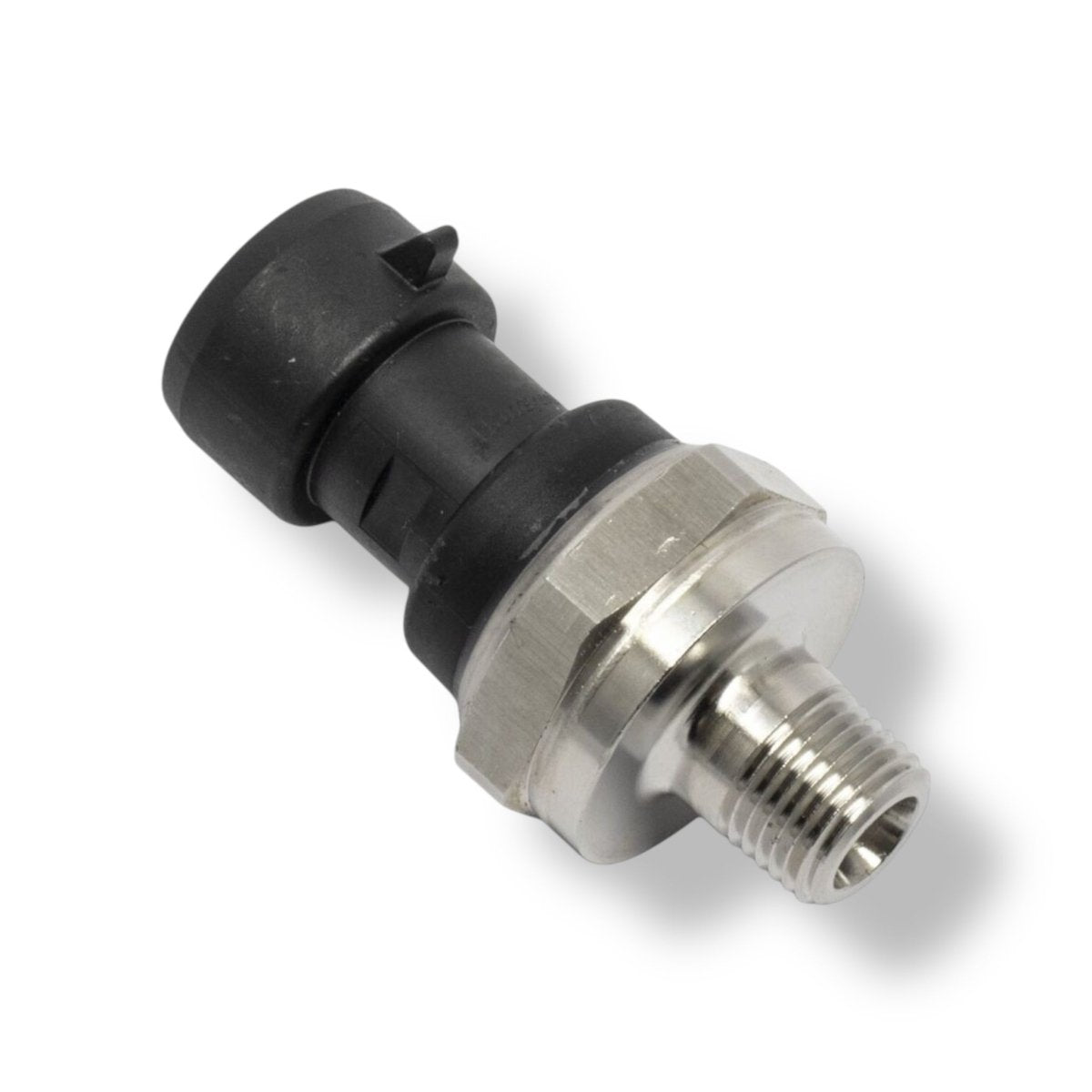

Honeywell Heavy Duty Stainless Pressure Sensor

Heavy-Duty Media-Isolated Pressure Transducer

This heavy-duty, media-isolated pressure transducer features a compact stainless steel construction, making it suitable for a wide range of media, including aggressive fluids and water. Engineered for tough environments, it offers exceptional accuracy, reliability, and long-term stability, delivering a cost-effective solution for demanding applications.

Key Features

• Rugged stainless steel construction
• Ratiometric output: 0.5 Vdc to 4.5 Vdc
• Current output: 4 mA to 20 mA
• Wide operating temperature range: -40°C to 125°C
• High accuracy:
  • Total Error Band: ±0.75% to ±1.0% FSS (-40°C to 125°C)
  • ±0.15% FSS BFSL for voltage output
• Long-term stability: ±0.25% FSS
• Built-in mis-wiring protection

This sensor is designed for reliable performance in challenging industrial and environmental applications.
