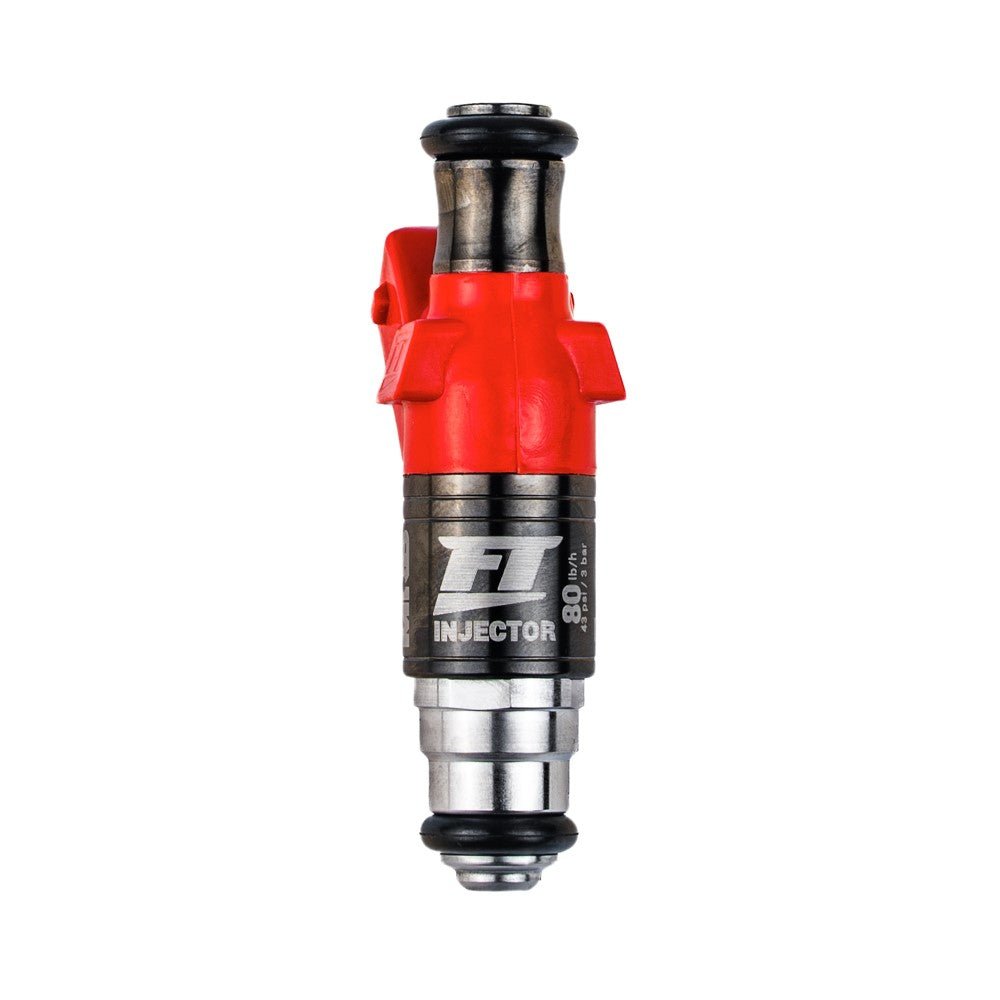

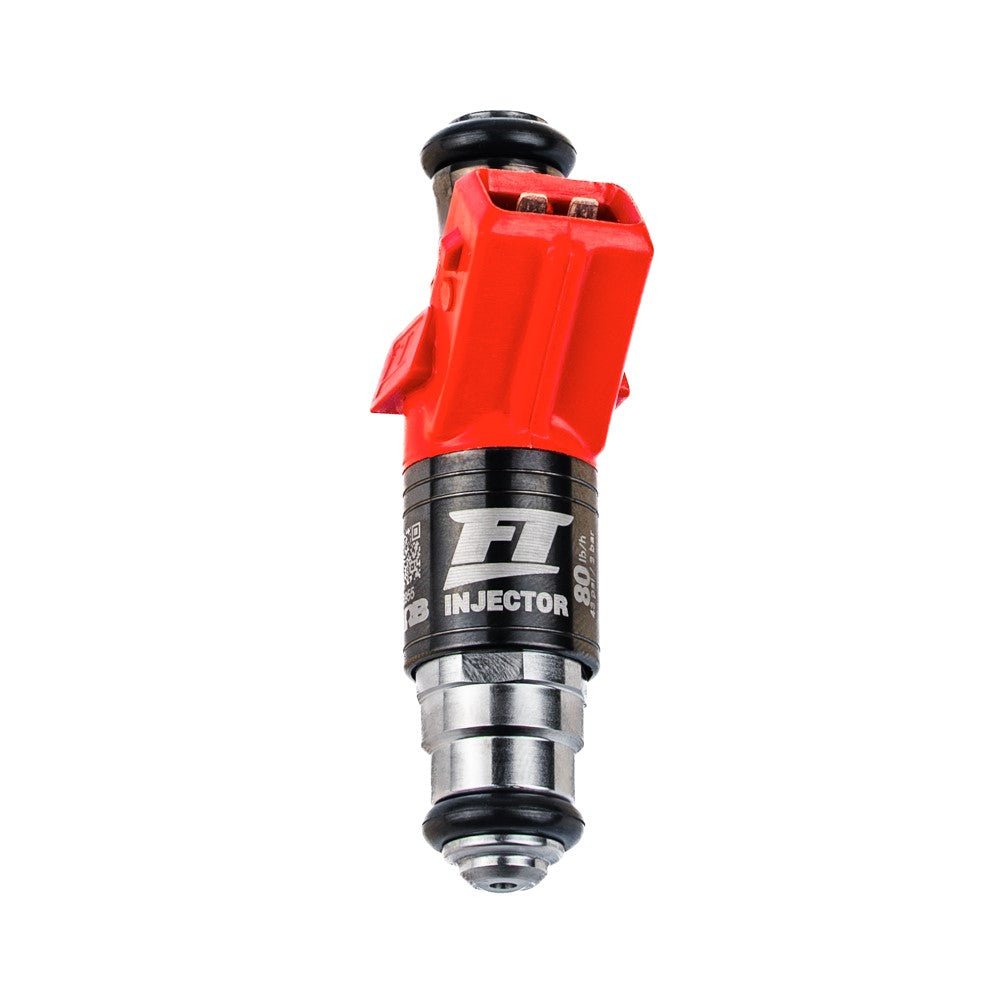

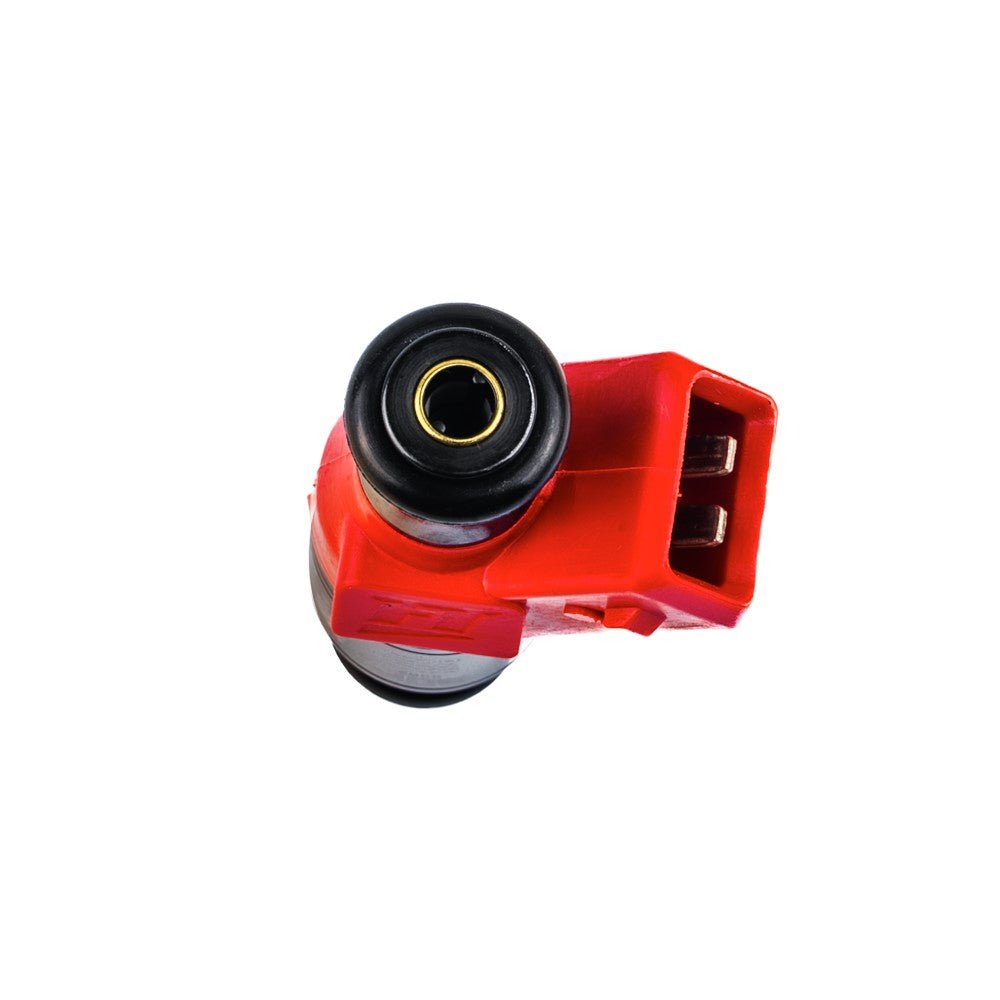

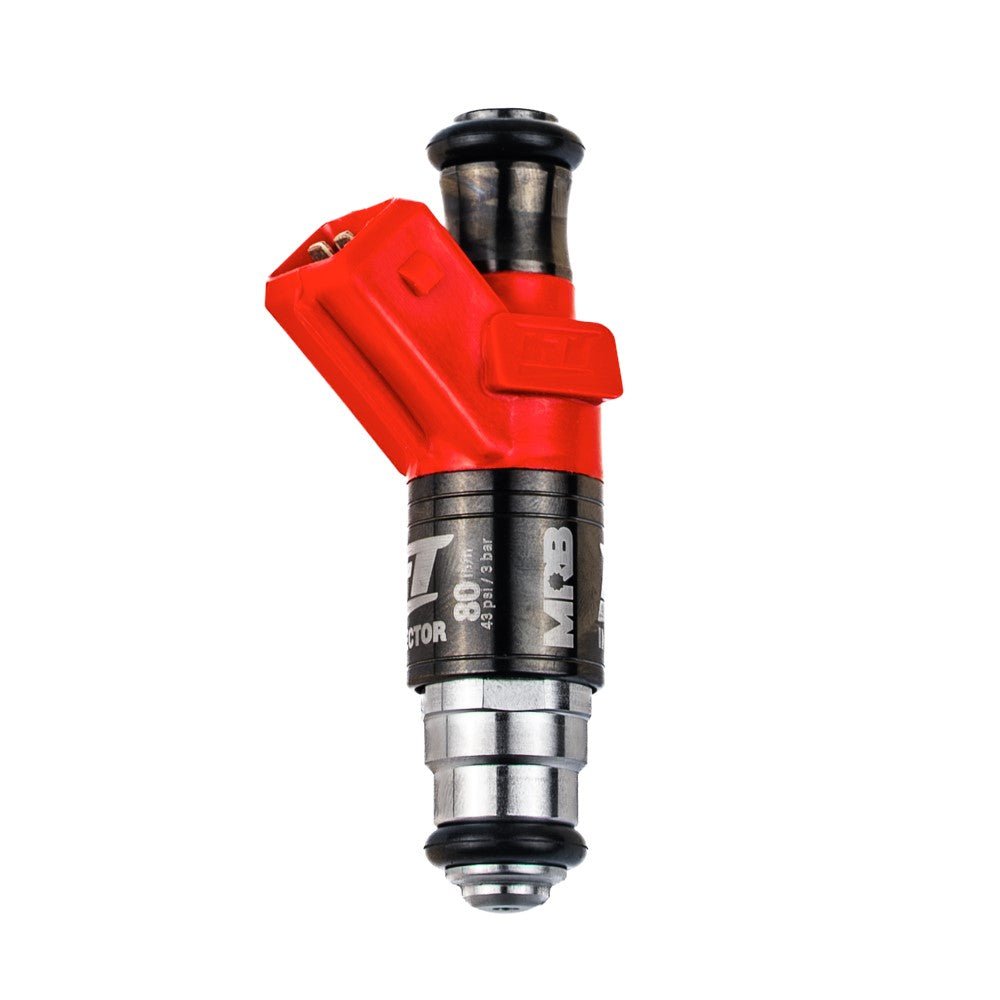

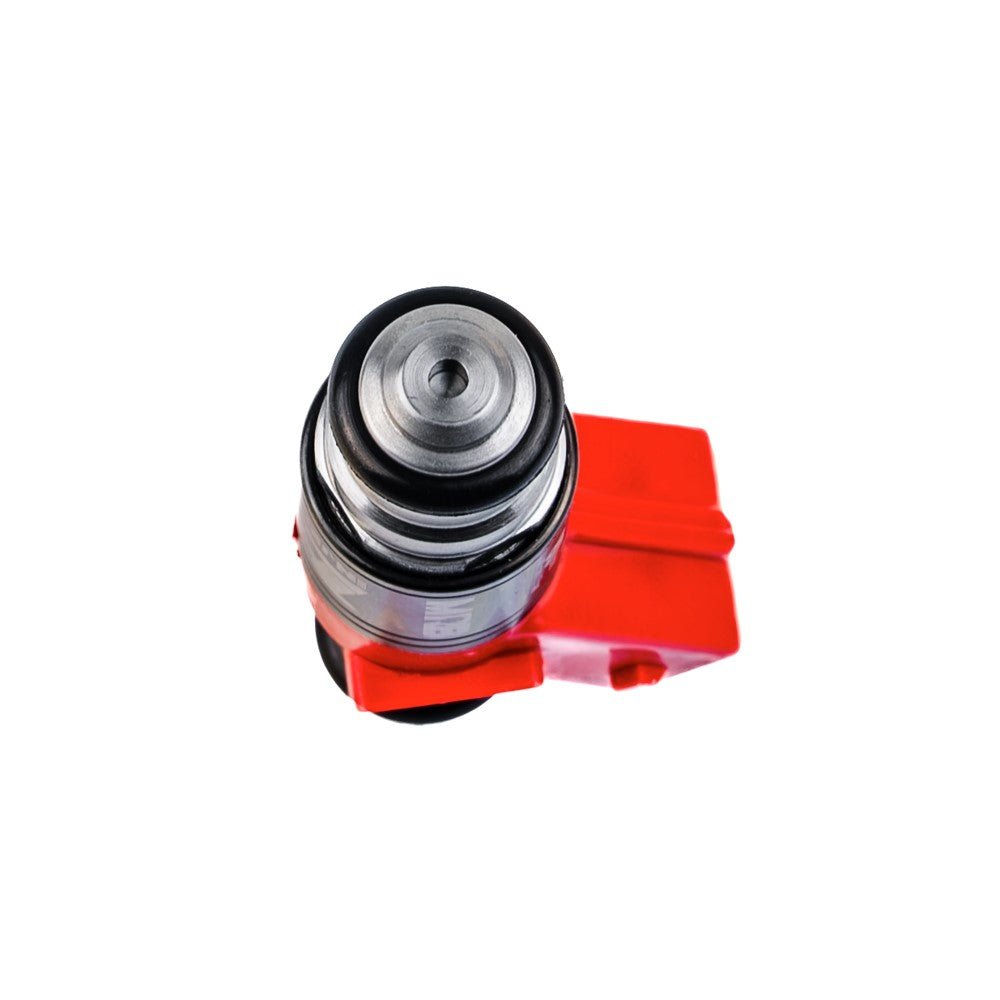

FT Injector 80 lb/h

The FT Injector 80 lb/hr (840 cc/min @ 43.5 psi) is a high impedance fuel injector from the FT Injector family, no Peak and Hold driver is required. The FT Injector is compatible with all available fuels (gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

DOWNLOAD MANUAL

DOWNLOAD CAD FILE

FEATURES

• REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders.
• It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used.
• Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
• Compatible with any ECU on the market
• FuelTech warranty and support
• Project developed prioritizing the quality and durability of the injector.

TECHNICAL DESCRIPTION

• High impedance
• Coil resistance: (8.2 - 8.1) Ohms
• Ingress protection Rating: IP67 / NEMA6

DIMENSIONS:

1 - Overall height - 74 mm (2.91”)

2 - Overall width - 18 mm (0.71”)

3 - Top O-ring diameter - 14.50 mm (0.56”)

4 - Tip - 4.1 mm (0.16”)

5 - Bottom O-ring diameter - 14.50 mm (0.56”)

PRODUCT CONTENT:

• 1 FT Injector
• 1 Manual

WARRANTY: 90 days
