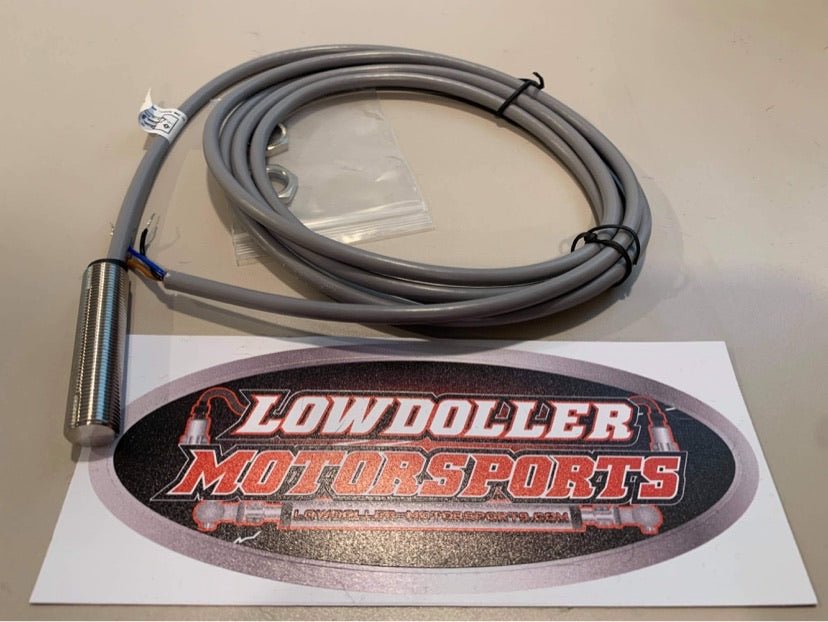

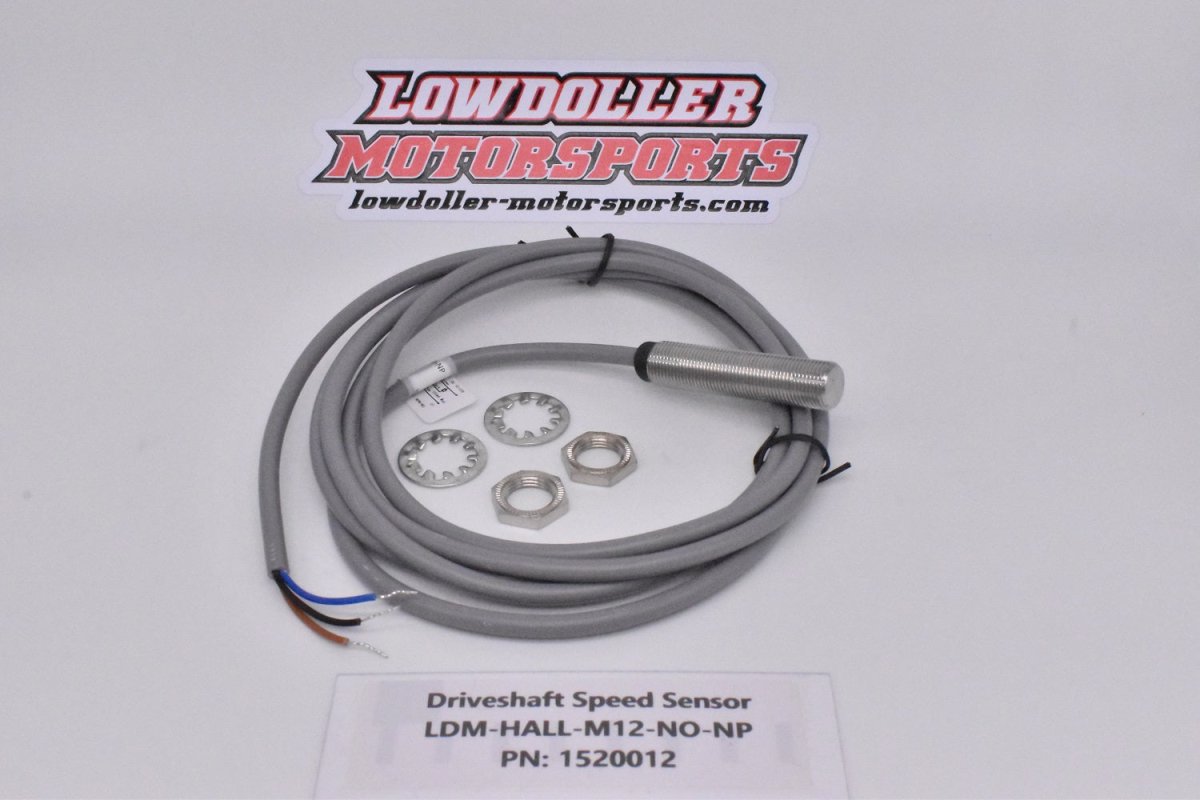

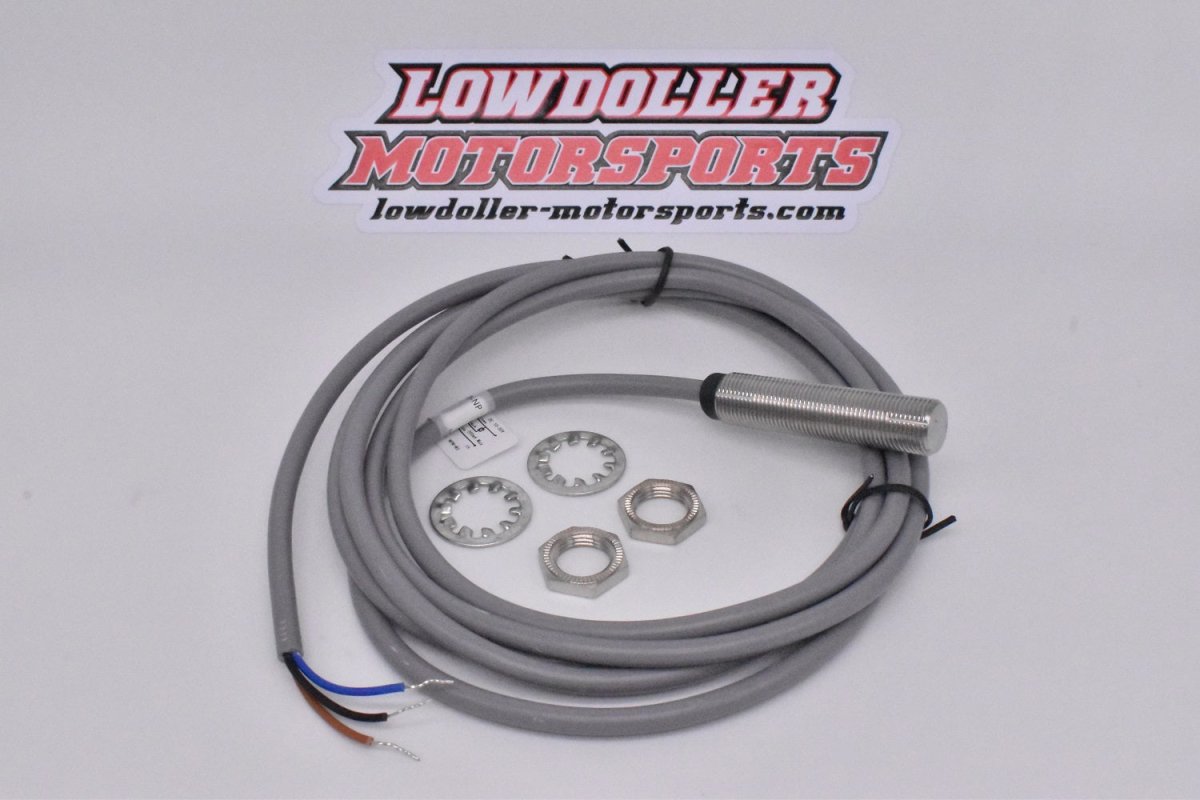

Driveshaft Speed Sensor, Hall Effect, M12 Flush Mount PN: 1520012

Lowdoller Motorsports hall effect driveshaft speed sensor in an M12 stainless flush mount body. It is triggered by ferrous metal, so it reads the teeth of a steel reluctor ring directly, and the built-in LED makes setting the air gap quick.

• Hall effect, triggered by ferrous metal (not magnets)
• M12 stainless steel body, flush mount
• Air gap: 0.1 mm to 1 mm
• Supply: 10 to 30 VDC, short circuit and reverse polarity protected
• Output: normally open, NPN (signal pulls to 0V)
• Max switching frequency: 8,000 Hz
• Operating temperature: -13°F to 176°F
• IP67 waterproof
• Built-in LED for setup
• Works with Lowdoller 16 and 32 tooth driveshaft reluctor rings

Wiring

• Brown: power, 10 to 30 VDC
• Blue: clean ground
• Black: signal (0V to the data logger or ECU)

Lowdoller part number 1520012 (model LDM-HALL-M12-NO-NP).
