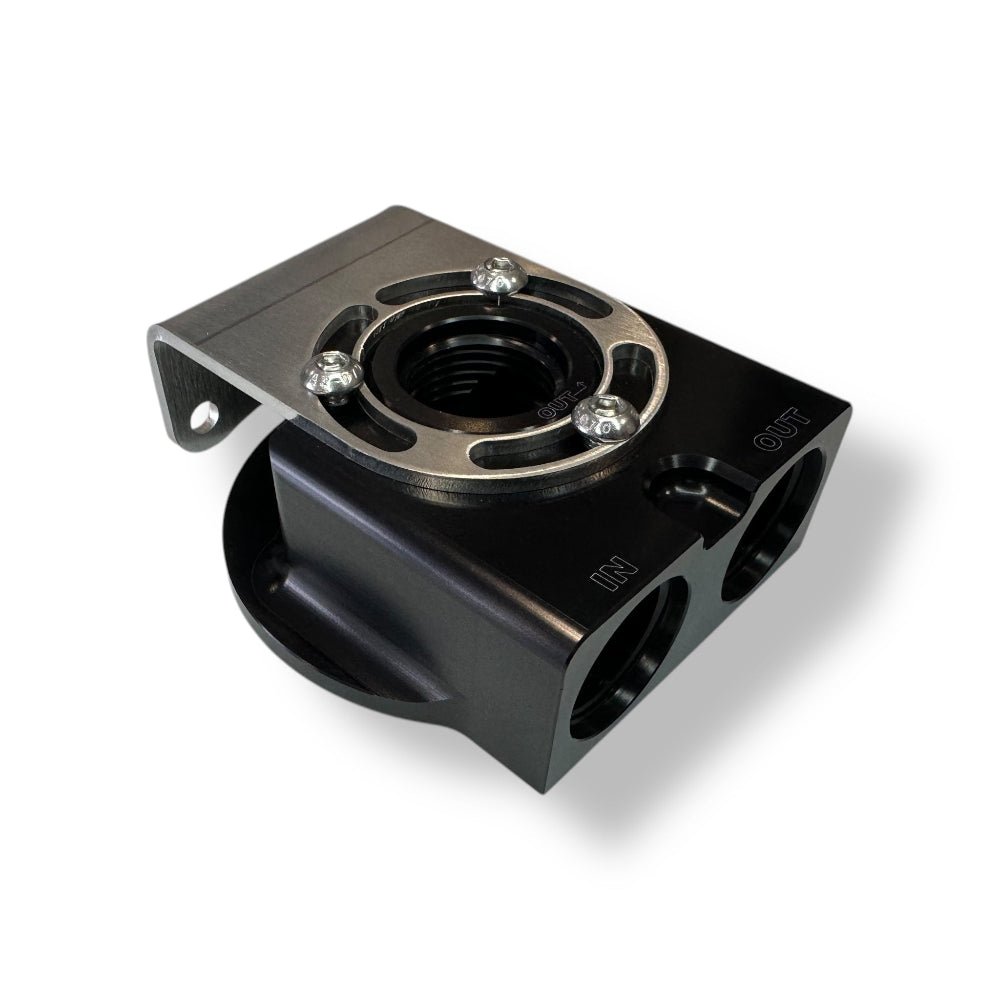

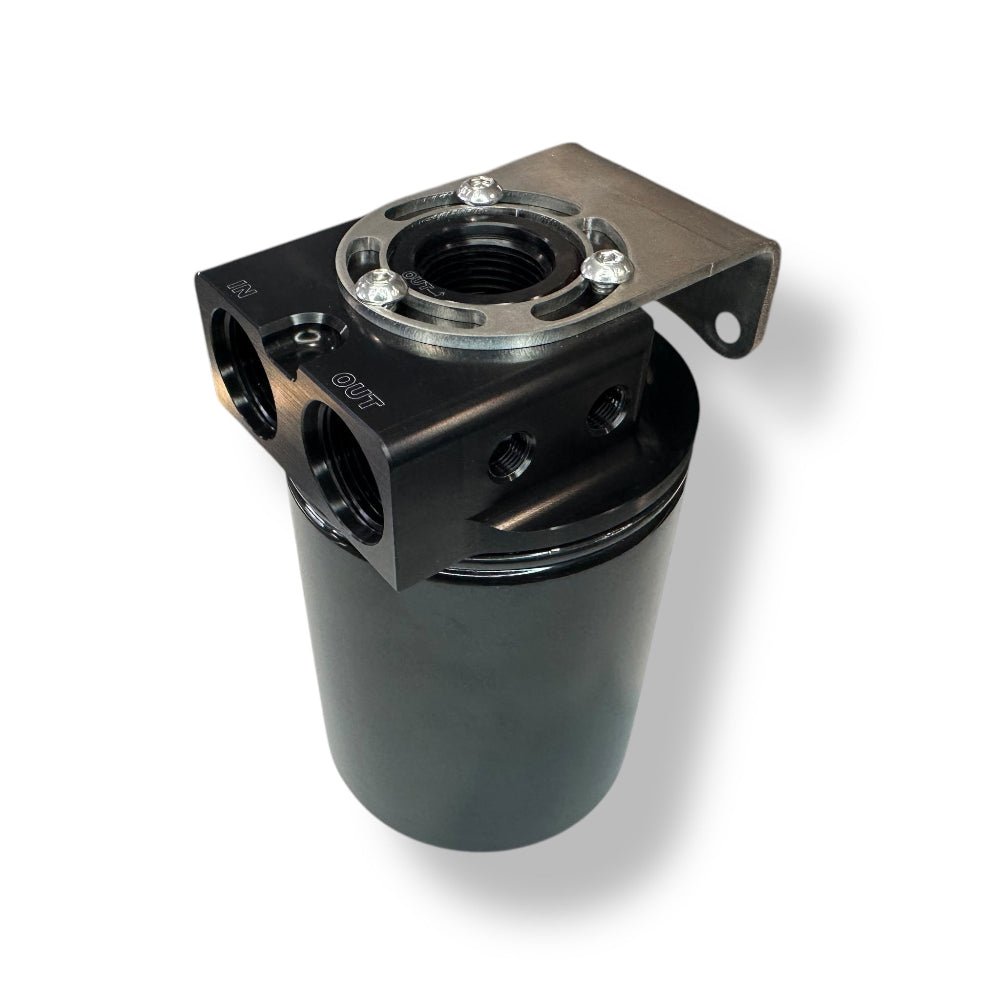

BPS Remote Oil Filter Mount

Relocate your oil filter easily with the Billet Pro Shop remote oil filter mount. This precision machined billet aluminum housing allows you to move your filter to a more convenient and serviceable location while maintaining strong, consistent oil flow.

Why it helps
Perfect for performance and custom builds where space is tight or accessibility is limited. The design features multiple AN ports and sensor provisions, making it ideal for engines running turbo oil feeds or aftermarket gauges.

Details

• 12AN O ring ports for high flow and secure sealing

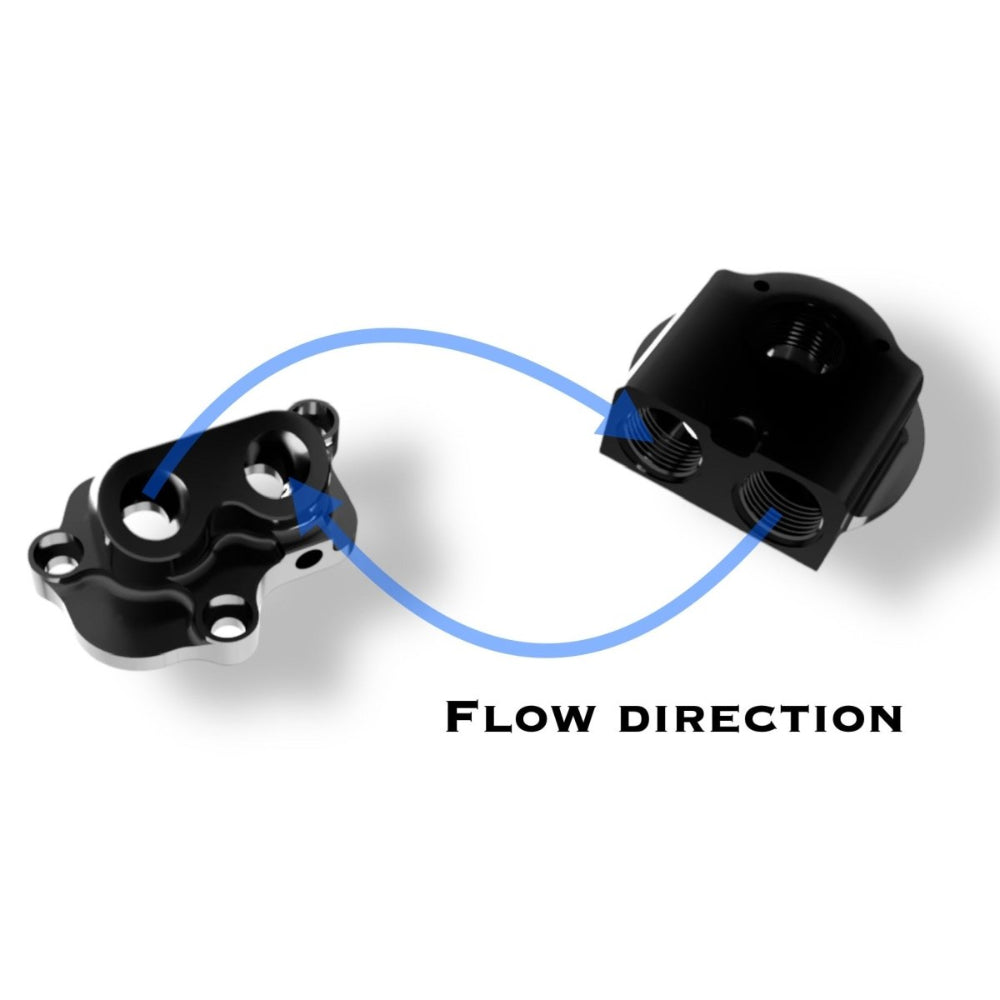

• One front inlet, one front outlet, and one top outlet for flexible plumbing

• Two 1/8 NPT filtered oil ports for turbo feeds or pressure sensors

• Compatible with 13/16 16 thread filters such as part number 51060R

• CNC machined from lightweight billet aluminum

• Black anodized finish for durability and corrosion resistance

• Includes stainless mounting hardware, one 12AN plug, and two 1/8 NPT plugs

• Total assembly weight is approximately 1.05 pounds

Oil filter not included
