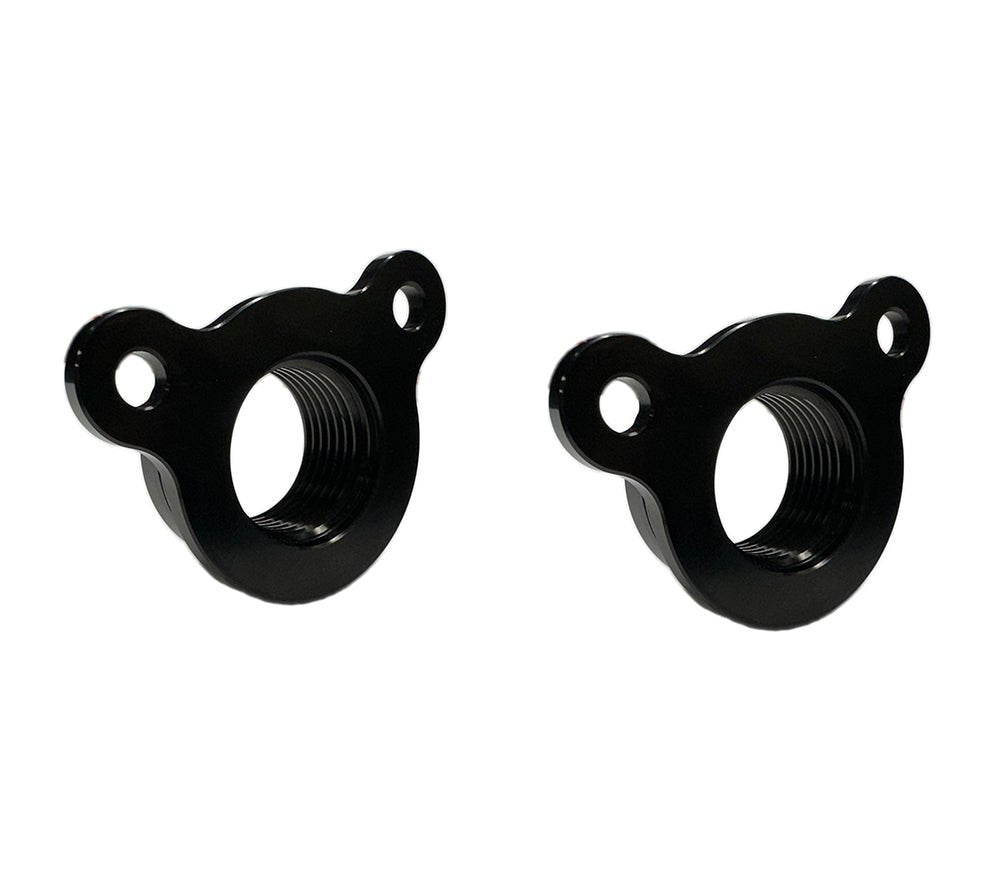

BPS 2011-2017 Coyote Rear Head Coolant Fitting (pair)

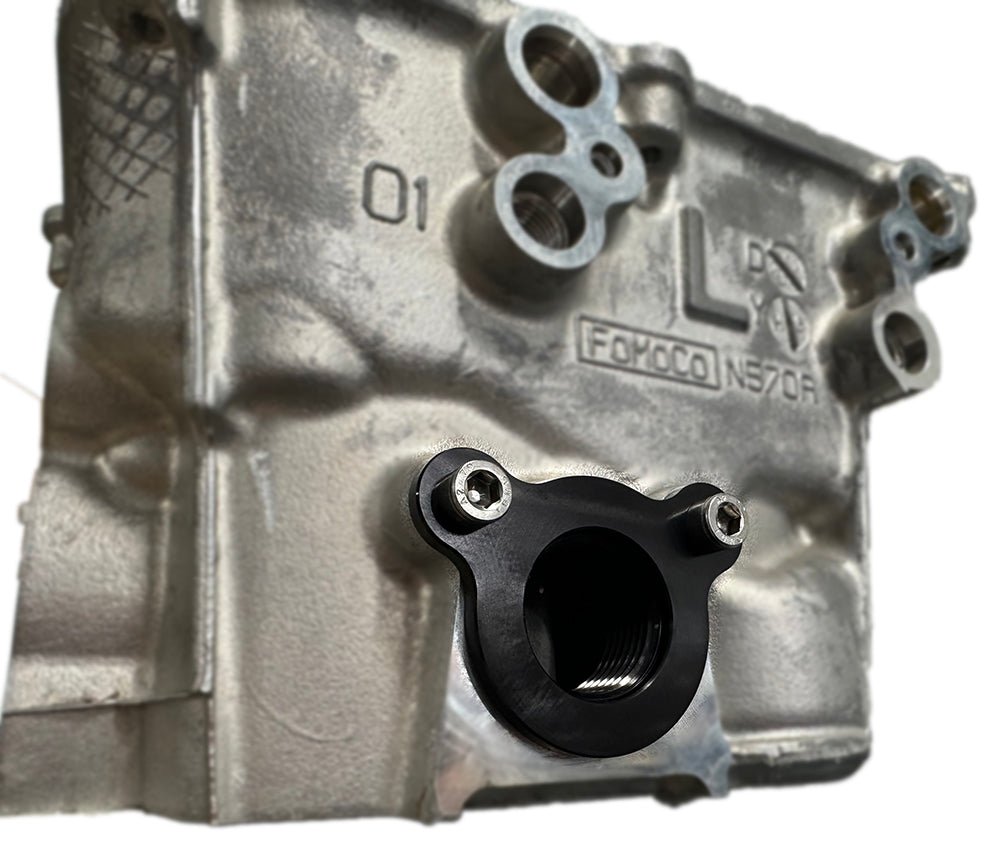

BPS rear coolant fittings are specifically designed for dry decked Coyote heads and can fit both Gen 1 and 2 styles. CNC machined from 6061-T6 aluminum and anodized in black, they include stainless steel hardware and O-ring seals for a secure and leak-proof fit.

• Sold as a pair
• Accepts -12 ORB fittings

BPS part number: EN048

These are only needed on a dry decked engine — with the block-to-head coolant transfer gone, the rear ports have to be plumbed rather than plugged. The front of the engine is the front cylinder head adapters (EN011), which are the other half of a dry deck coolant setup. The -12 ORB to AN fittings are separate: Low-Pro Series adapters.

Where the rear ports sit in the coolant path: Coyote coolant flow and fitting guide.
