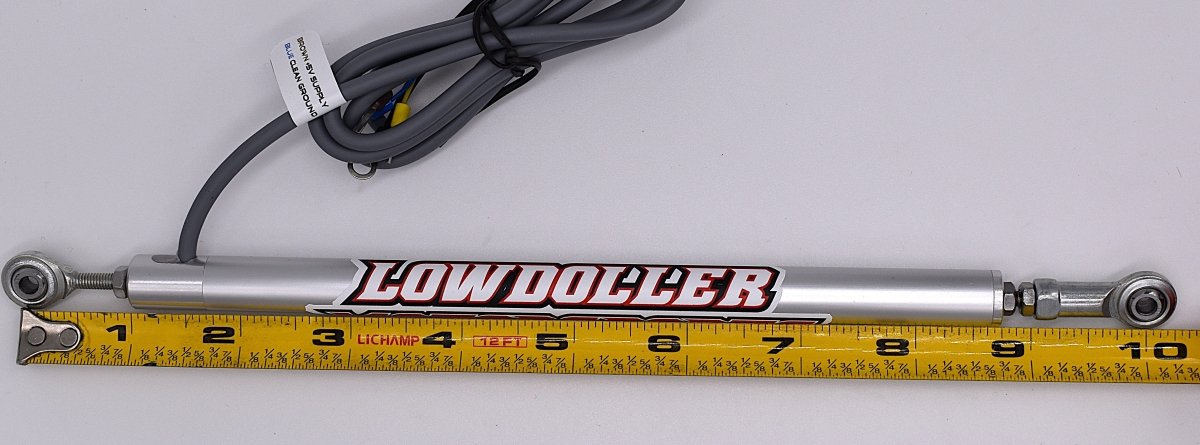

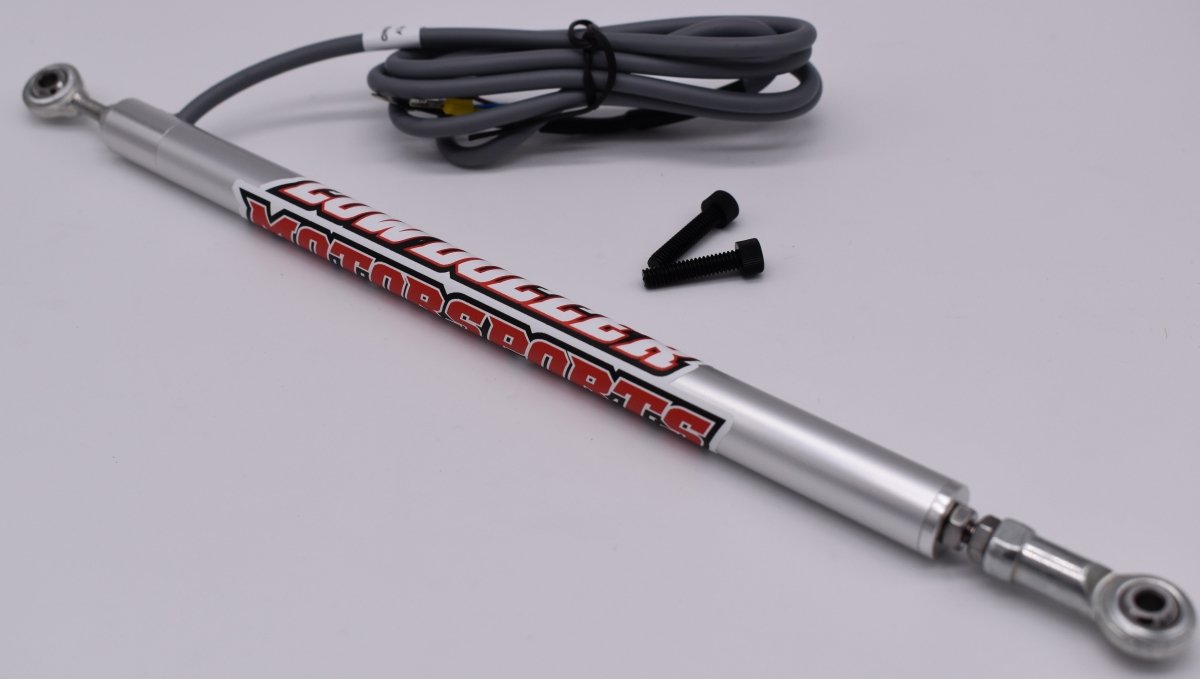

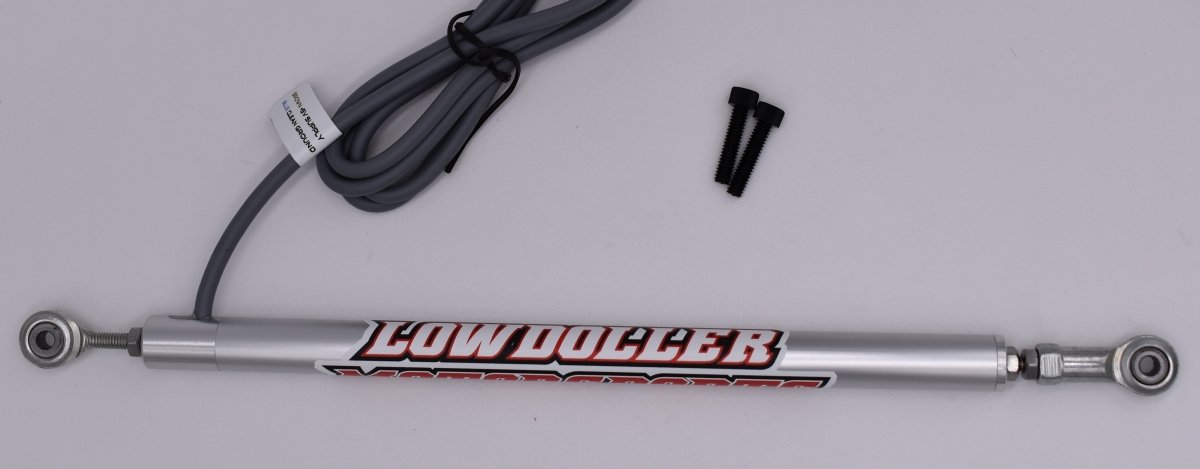

1/2" x 5" Front Shock Travel Sensor, 0-5V Linear PN: STS12500

Lowdoller Motorsports 5" stroke linear travel sensor with a 1/2" body. For front shocks with a little more travel and for steering knuckle position. It outputs a 0-5V analog signal, so it plugs into any Racepak, Holley EFI, FuelTech or Haltech analog input, and it works on anything from a stock suspension to a Pro Mod.

• Body diameter: 1/2"
• Stroke: 5"
• Overall length: 10" fully compressed, 15" fully extended (eye to eye)
• Output: 0-5V analog
• Compatible with all major data loggers and ECUs (Racepak, Holley EFI, FuelTech, Haltech)
• Sold individually
• Pre-wired extension cable, mounts and replacement heim joints sold separately

Lowdoller part number STS12500.
